Description
Mapal Order Number: 31035452
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
Properties | ||
---|---|---|

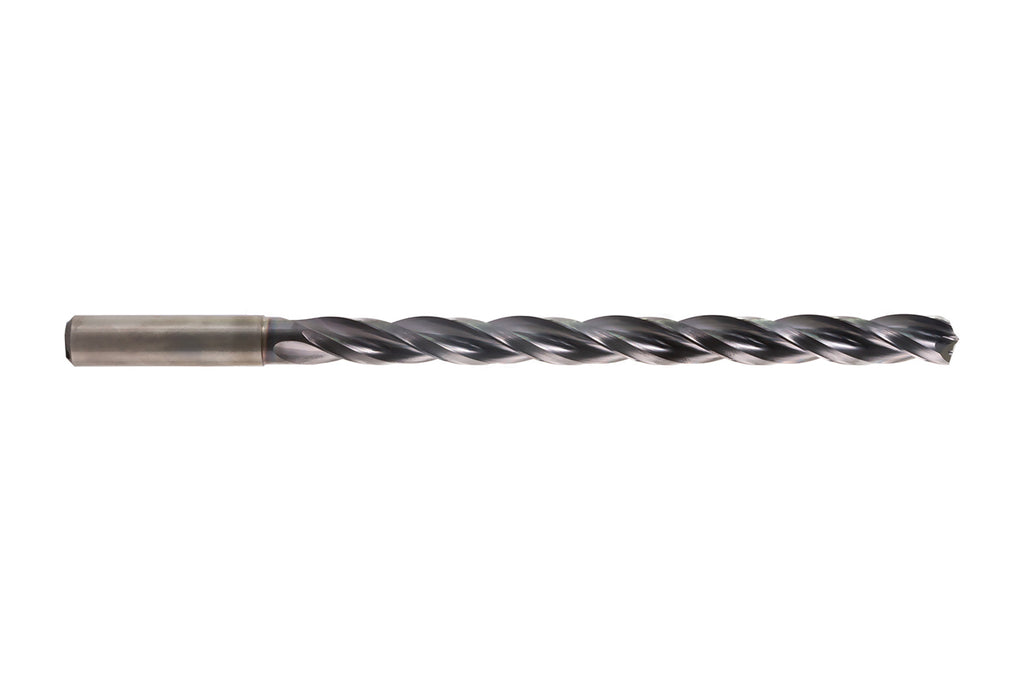

Name | Mapal SCD631-1580-3-3-135HA12-HP358 Tritan-Drill-Uni-Plus 31035452 | |
EDP # | 0673546 | |
Drilling Depth | 12xD | |
d1 | 0.6220" | 15.800 mm |
Drilling Depth Value | 7.4646" | 189.600 mm |
d2 | 0.6299" | 16.000 mm |
l1 | 10.2362" | 260.000 mm |
l2 | 8.1890" | 208.000 mm |
l3 | 7.5591" | 192.000 mm |
l4 | 1.8898" | 48.000 mm |
Cooling | Internal Cooling | |
Number Of Cutting Edges (z) | 3 | |
Shank Tolerance | h6 | |
Bore Tolerance | ≥ IT 9 | |
Shank Type | HA | |
Tip Angle | 135° | |
Side Rake Angle | 30° | |
Material Group |
Product Features:
- MAPAL has developed the Tritan-Drill-Uni-Plus specifically for high-speed machining of steel, stainless steel, cast iron, and aluminum. This three-edged solid carbide drill features an optimized groove profile. Thanks to its innovative coating and finely ground chip flutes, the Tritan-Drill-Uni-Plus offers higher wear resistance and ensures optimal chip removal with short chips even at the highest feed rates.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
