Description
Mapal Order Number: 30651035
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCM630-1200Z05R-R0030HB-HP826 OptiMill®-Tro-Titan 30651035 | |
| EDP # | 0675613 | |
| Product Class | Expert-Line | |
| Diameter (d1) | 0.4724" | 12.000 mm |
| Shaft Diameter (d2) | 0.4724" | 12.000 mm |
| Cylindrical Part Diameter (d3) | 0.4646" | 11.800 mm |
| Total Length (l1) | 3.6614" | 93.000 mm |
| Length Of Cutting Edge (l2) | 1.4173" | 36.000 mm |
| Neck Length (l3) | 1.7717" | 45.000 mm |
| Corner Radius (R) | 0.0118" | 0.300 mm |
| Number Of Cutting Edges (z) | 5 | |
| Cooling | External Cooling | |
| Shank Type | HB | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 1.8110" - 1.8898" | 46.000 - 48.000 mm |
Product Features:

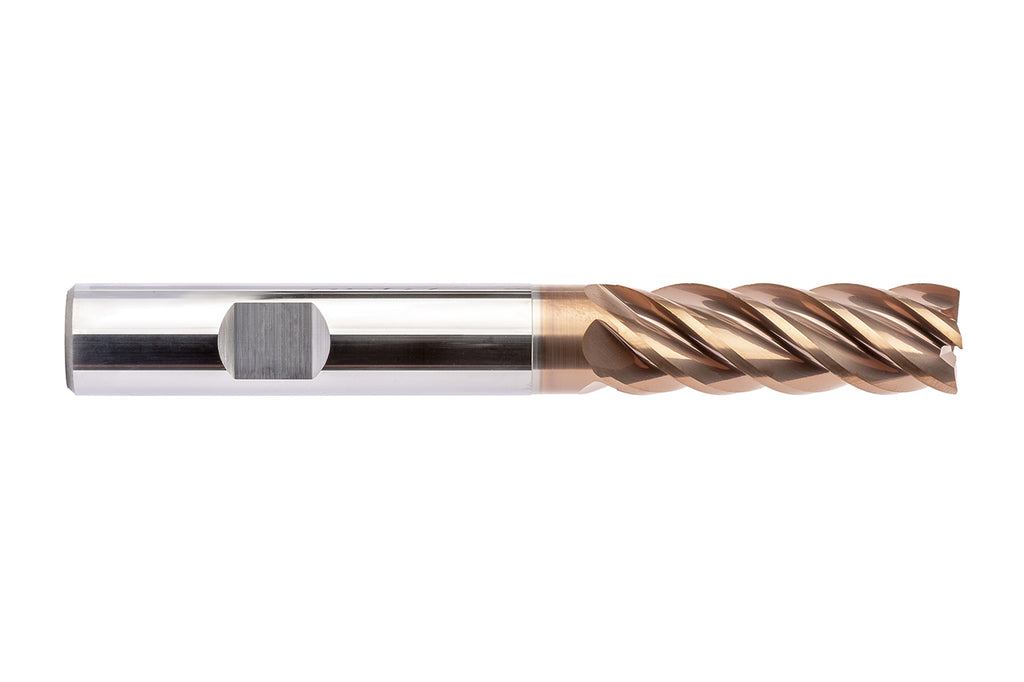

- The OptiMill-Tro-Titan five-edged corner milling cutter is characterized by maximum material removal rates while maintaining high surface quality. The uneven pitch and step avoid vibrations and result in smooth cutting behavior. It is specifically designed for trochoidal milling in partial cuts, trimming, and cutting depths up to 3xD.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
