Description
Mapal Order Number: 31053121
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

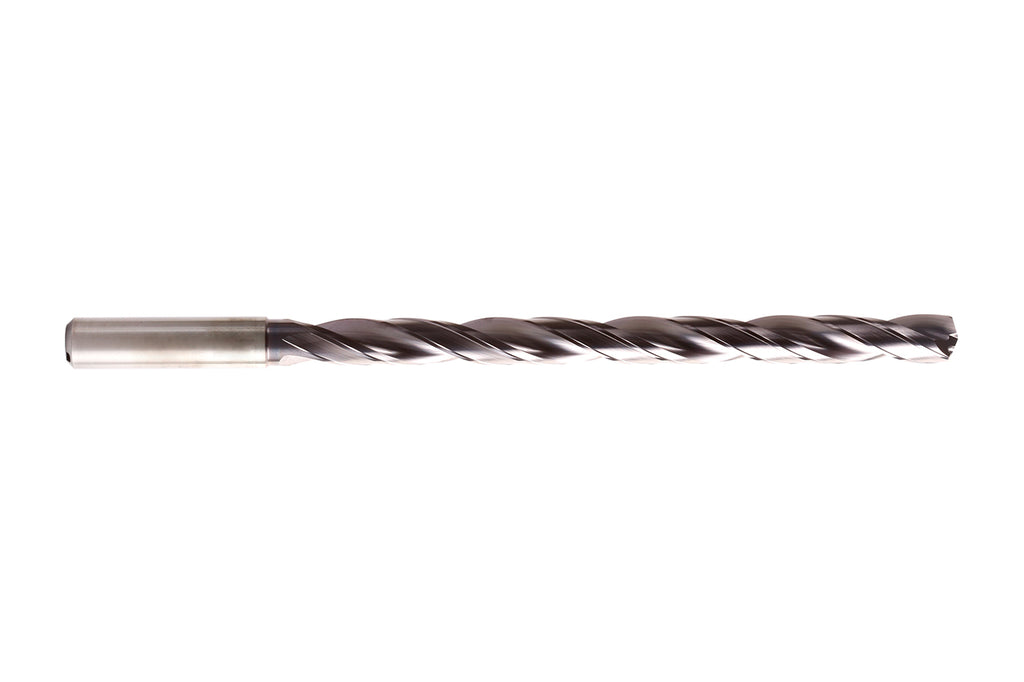

| Name | Mapal SCD611-1400-2-4-140HA12-HP358 MEGA-Quadro-Drill-Plus 31053121 | |
| EDP # | 0677166 | |
| Drilling Depth | 12xD | |
| d1 | 0.5512" | 14.000 mm |
| Drilling Depth Value | 6.6142" | 168.000 mm |
| d2 | 0.5512" | 14.000 mm |
| l1 | 9.0551" | 230.000 mm |
| l2 | 7.1654" | 182.000 mm |
| l3 | 6.5354" | 166.000 mm |
| l4 | 1.7717" | 45.000 mm |
| Cooling | Internal Cooling | |
| Number Of Cutting Edges (z) | 2 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 8 | |
| Shank Type | HA | |
| Tip Angle | 140° | |
| Side Rake Angle | 30° | |
| Material Group | ||
Product Features:
- The double-edged solid carbide drill MEGA-Quadro-Drill-Plus has been specifically developed for precise drilling. The total of four guiding phases enables maximum drilling quality in terms of alignment accuracy, coaxiality, and positional accuracy. Through a novel coating and improved sharpening, the MEGA-Quadro-Drill-Plus guarantees consistently reliable drilling results. An optimized edge rounding leads to a significant improvement in service life.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
