Description
Mapal Order Number: 31159489
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

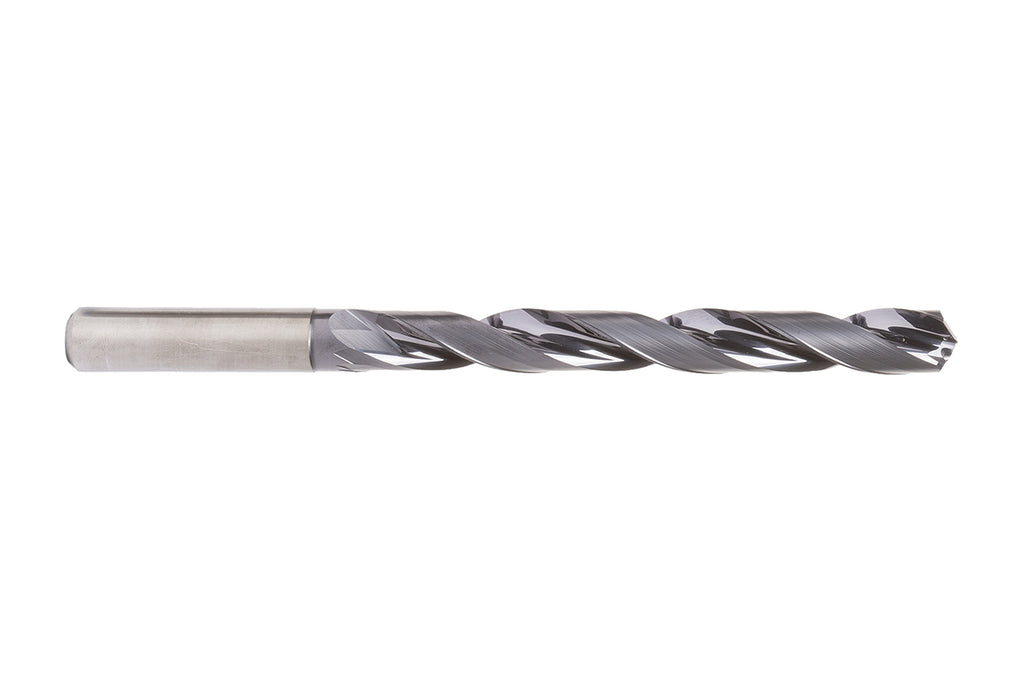

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCD411-1600-2-3-135HA08-HP374 MEGA-Speed-Drill-Inox 31159489 | |
| EDP # | 0677542 | |
| Drilling Depth | 8xD | |
| d1 | 0.6299" | 16.000 mm |
| Drilling Depth Value | 5.0394" | 128.000 mm |
| d2 | 0.6299" | 16.000 mm |
| l1 | 7.9921" | 203.000 mm |
| l2 | 5.9843" | 152.000 mm |
| l3 | 5.0394" | 128.000 mm |
| l4 | 1.8898" | 48.000 mm |
| Number Of Cutting Edges (z) | 2 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 9 | |
| Shank Type | HA | |
| Tip Angle | 135° | |
| Side Rake Angle | 30° | |
| Material Group | ||
Product Features:
- The cutting edges of the MEGA-Speed-Drill-Inox are unequally split. In addition, the drill has three guide chamfers. This prevents vibrations and reduces friction. The highly polished flutes guarantee optimum chip flow. The cutting geometry, which is specially adapted to stainless steel, makes it possible to drill holes with up to 30 % higher feed rates compared to conventional drills.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
