Description
Mapal Order Number: 30421479
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

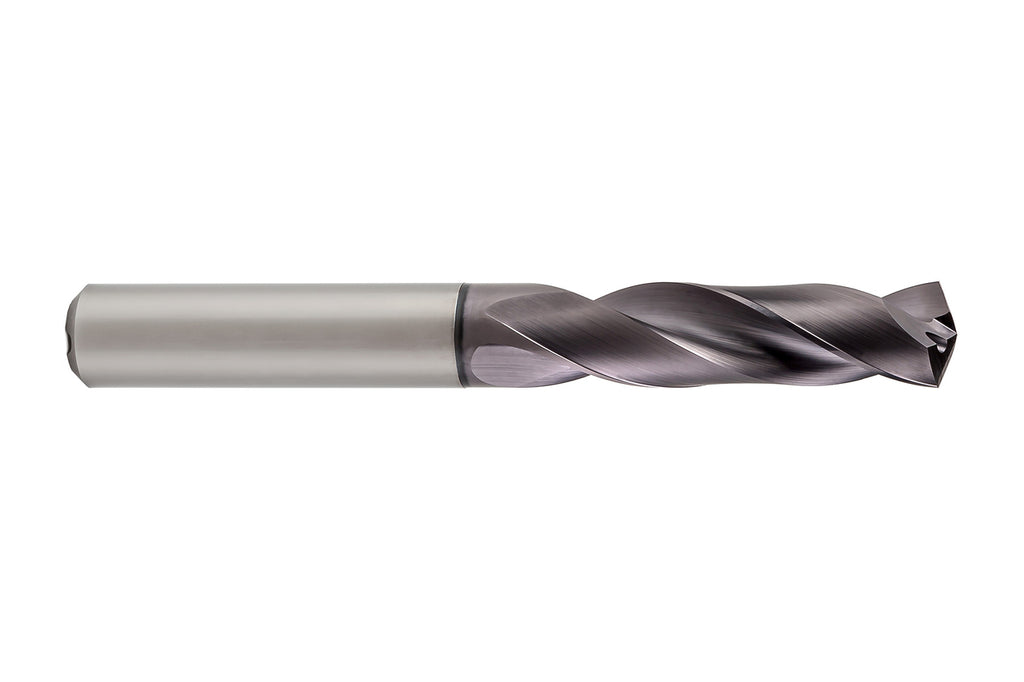

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCD361-1350-2-2-140HA03-HP132 ECU-Drill-Steel 30421479 | |
| EDP # | 0678161 | |
| Product Class | Basic-Line | |
| Drilling Depth | 3xD | |
| Drilling Depth Value | 1.5945" | 40.500 mm |
| d1 | 0.5315" | 13.500 mm |
| d2 | 0.5512" | 14.000 mm |
| l1 | 4.2126" | 107.000 mm |
| l2 | 2.3622" | 60.000 mm |
| l3 | 1.6929" | 43.000 mm |
| l4 | 1.7717" | 45.000 mm |
| Cooling | Internal Cooling | |
| Number Of Cutting Edges (z) | 2 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 9 | |
| Shank Type | HA | |
| Tip Angle | 140° | |
| Side Rake Angle | 30° | |
| Material Group | ||
Product Features:
- The double-edged solid carbide drill ECU-Drill-Steel offers a very good price-performance ratio and is the first choice for small to medium quantities.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
