Description
Mapal Order Number: 30801205
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

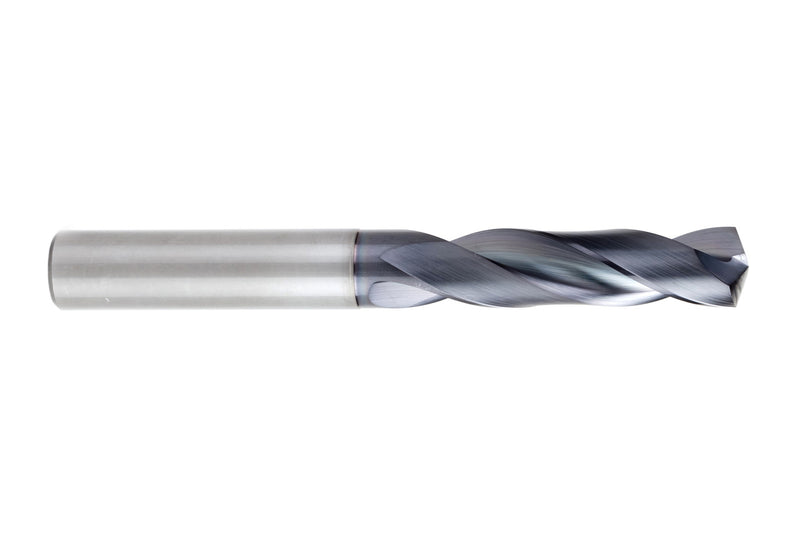

| Name | Mapal SCD600-0900-2-2-140HA03-HP358 MEGA-Drill-Steel-Plus 30801205 | |
| EDP # | 0678355 | |
| Product Class | Performance-Line | |
| Drilling Depth | 3xD | |
| Drilling Depth Value | 1.0630" | 27.000 mm |
| d1 | 0.3543" | 9.000 mm |
| d2 | 0.3937" | 10.000 mm |
| l1 | 3.5039" | 89.000 mm |
| l2 | 1.8504" | 47.000 mm |
| l3 | 1.3780" | 35.000 mm |
| l4 | 1.5748" | 40.000 mm |
| Cooling | External Cooling | |
| Number Of Cutting Edges (z) | 2 | |
| Shank Tolerance | h6 | |
| Bore Tolerance | ≥ IT 9 | |
| Shank Type | HA | |
| Tip Angle | 140° | |
| Side Rake Angle | 30° | |
| Material Group | ||
Product Features:
- The double-edged solid carbide drill MEGA-Drill-Steel-Plus is ideally suited for medium to high quantities in a wide range of applications. The special design of the cutting edges and the chip chambers make it ideal for economical steel machining.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
