Description
Mapal Order Number: 31152864
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal MBN110-100-0500-4500X100-HC116 OptiMill®-3D-BN-Graphite 31152864 | |
| EDP # | 0704344 | |
| Product Class | Expert-Line | |
| Diameter (d1) | 0.3937" | 10.000 mm |
| Shaft Diameter (d2) | 0.3937" | 10.000 mm |
| Total Length (l1) | 3.9370" | 100.000 mm |
| Length Of Cutting Edge (l2) | 0.7874" | 20.000 mm |
| Neck Length (l3) | 1.7717" | 45.000 mm |
| Corner Radius (R) | 0.1969" | 5.000 mm |
| Number Of Cutting Edges (z) | 2 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Cutting Material | NCD09 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 2.2835" - 2.3622" | 58.000 - 60.000 mm |
Product Features:

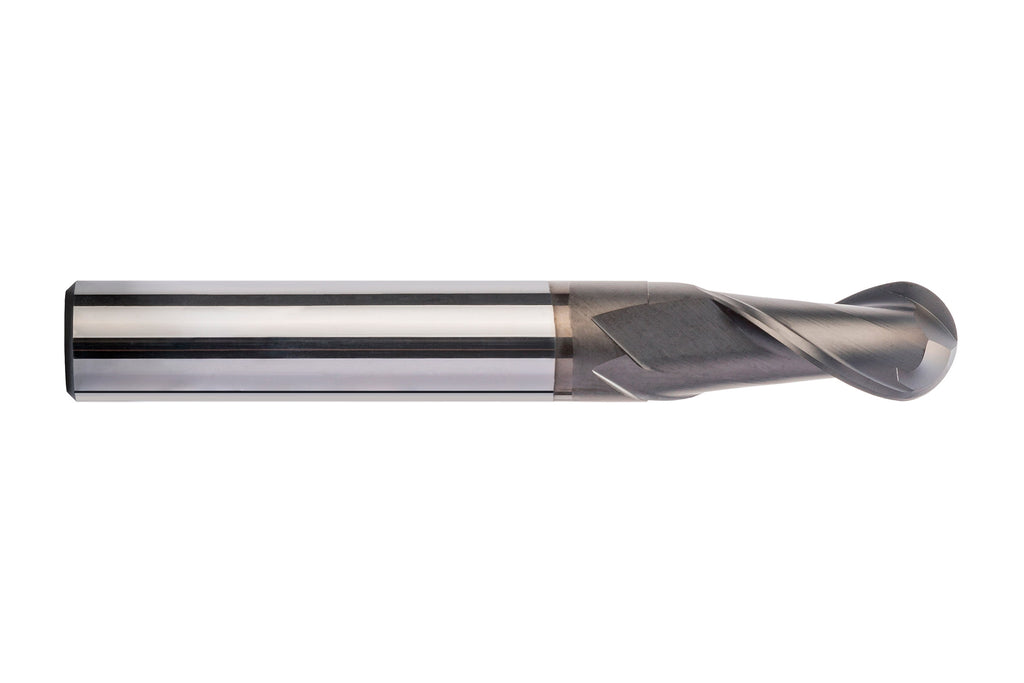

- The OptiMill®-3D-BN-Graphite ball milling cutter was specially developed for machining graphite electrodes. It is characterised by a special geometry and diamond coating, which prevents chipping and thus damage to the sensitive profiles even after prolonged milling.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.
