Description
Mapal Order Number: 31151708
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

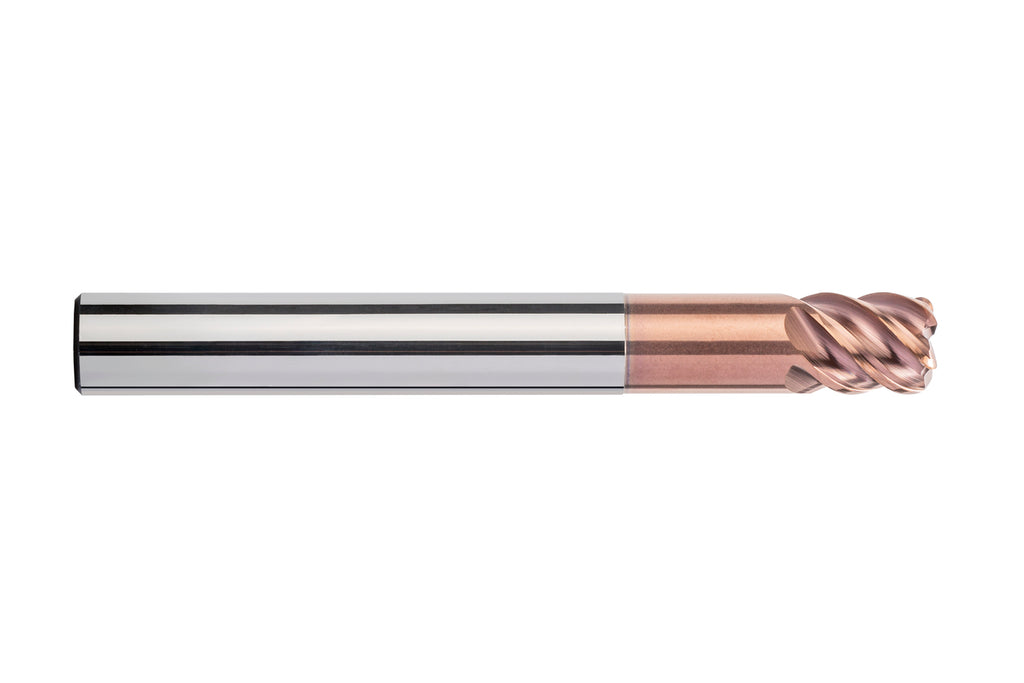

| Name | Mapal MCR110-080-0050-2400X064-HP808 OptiMill®-3D-CR-Hardened 31151708 | |
| EDP # | 0705499 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.3150" | 8.000 mm |
| Shaft Diameter (d2) | 0.3150" | 8.000 mm |
| Total Length (l1) | 2.5197" | 64.000 mm |
| Length Of Cutting Edge (l2) | 0.3307" | 8.400 mm |
| Neck Length (l3) | 0.9449" | 24.000 mm |
| Corner Radius (R) | 0.0197" | 0.500 mm |
| Number Of Cutting Edges (z) | 5 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 1.0236" - 1.1024" | 26.000 - 28.000 mm |
Product Features:
- The OptiMill-3D-CR-Hardened corner radius cutter has been specially developed for machining materials up to 68 HRC. It is characterized by a high-precision corner radius with high radius accuracy, making it ideal for finishing 3D shapes. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are characterized by the dimensions and geometries specially adapted to mold making.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
