Description
Ceratizit Article Number: 70355630
Ceratizit Material Number: 11007629
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

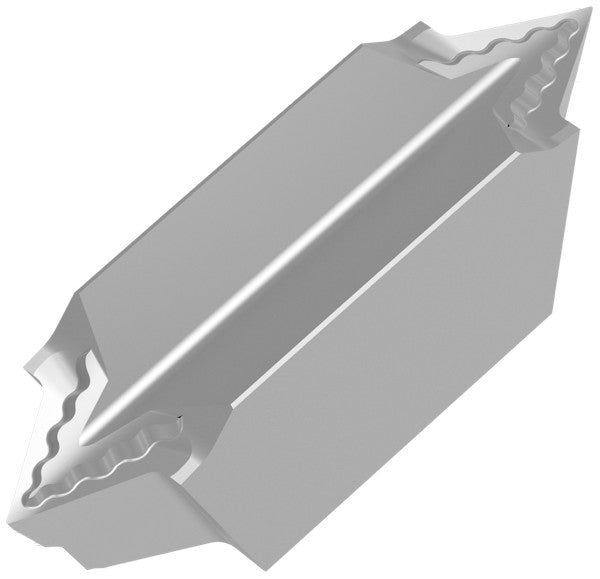

| Name | Ceratizit TC16-2 EI-G60-27P H216T Threading Inserts Partial Profile 60° 70355630 | |
| EDP # | 0711875 | |
| Weight (1 pc.) | 0.1 oz | 4.2 g |

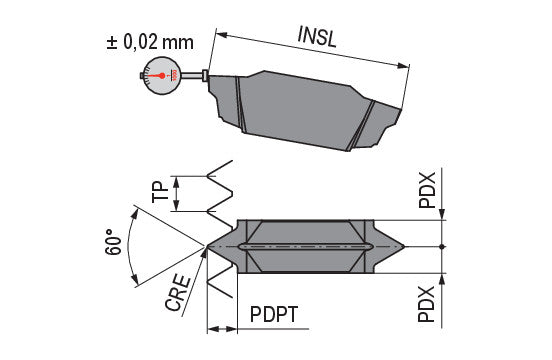

| Thread pitch range / TP | 1.75 - 3.0 | |
| Profile depth insert / PDPT | 0.0980" | 2.490 mm |
| Profile distance ex / PDX | 0.0846" | 2.150 mm |
| Spot radius / CRE | 0.0043" | 0.110 mm |
| Size | TC 16-2 ... | |
| Insert length / INSL | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
