Description
Mapal Order Number: 30550825
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

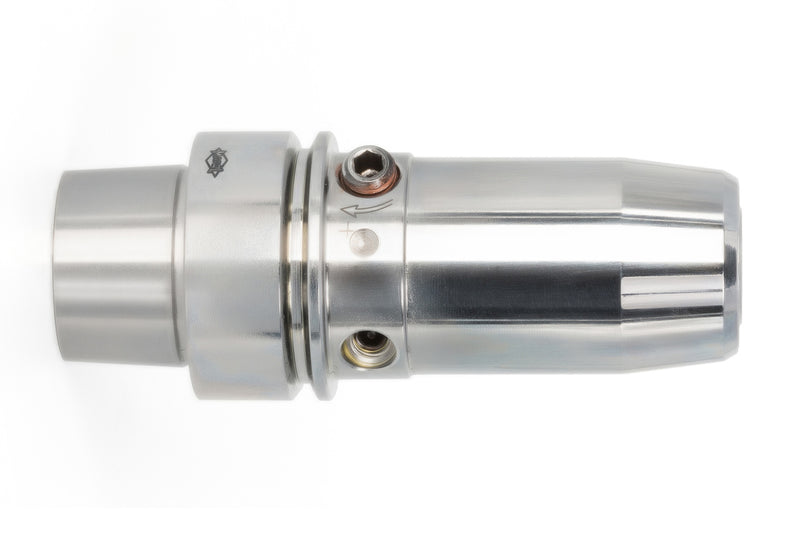

| Name | Mapal MHC-HSK-E050-20-090-1-0-A Hydro Chuck MHC, Standard 30550825 | |
| EDP # | 0733911 | |
| Machine Connection | HSK-E | |
| Size Machine Connection | 50 | |
| Technology | HydroChuck | |
| d1 | 0.7874" | 20.000 mm |
| d2 | 1.4764" | 37.500 mm |
| d3 | 1.6535" | 42.000 mm |
| d4 | 2.2441" | 57.000 mm |
| d5 | 1.5748" | 40.000 mm |
| l1 | 3.5433" | 90.000 mm |
| l2 | 2.0079" | 51.000 mm |
| l3 | 0.3937" | 10.000 mm |
| l4 | 1.1417" | 29.000 mm |
| l5 | 1.8898" | 48.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Axial | |
| Material Group | ||
Product Features:
- The HydroChuck MHC is the cornerstone of hydraulic expansion technology. The high concentricity and the excellent vibration damping guarantee optimum machining results - with easy handling at the same time.
Technical Reference Files:
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-E form is designed for extreme speeds; with all sources of unbalance removed. This type still has a ring feature for automatic tool changing, but does not have any feature for integrating RFID chips
