Description
Zedaro UID: 0754226
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

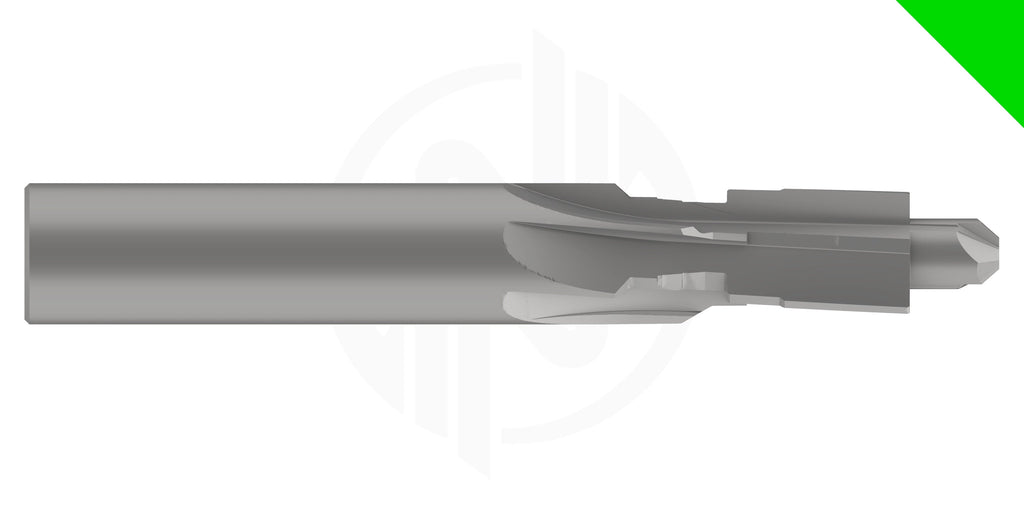

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNCHIRPR-19.80Z26.2-11STEPFRM-U54CG1 | |
| EDP # | 0754226 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 24.0 oz | 677 g |
| Gauge Diameter | 0.7795" | 19.800 mm |
| Gauge Distance (from tip) | 1.0315" | 26.200 mm |
| Application | Finish Flank Milling <20k RPM (Chirper) | |
| Form | Contour / Profile | |
| Shank Diameter (h5) | 0.7874" | 20.000 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h6 | |
| Length of Cut | 2.1654" | 55.000 mm |
| Overall Length | 5.4000" | 137.160 mm |
| Reach | 2.7953" | 71.000 mm |
| Minimum Extension | 2.9528" | 75.000 mm |
| Maximum Extension | 4.2205" | 107.200 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
- This is a custom design which does not follow standard proportions.
