Description
Ceratizit Article Number: 3019802600
Ceratizit Material Number: 12544662
Ceratizit Komet Number (Unpacked): F10 11080
Ceratizit Komet Number (Packed): F1011080
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit COUNTERSINK TOOL KWZ-M16-K2 Insert Countersink 180° 3019802600 | |
| EDP # | 0756428 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 11.0 oz | 316 g |

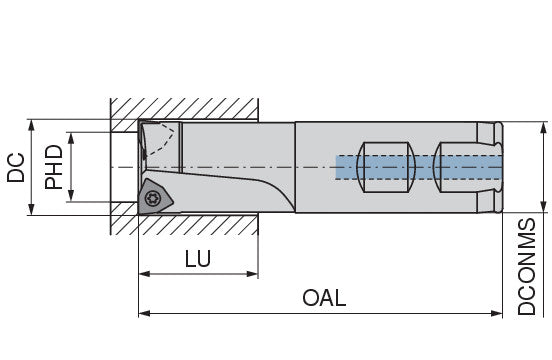

| Cutting diameter / DC | 1.0236" | 26.000 mm |
| Premachined hole diameter / PHD | 0.6693" | 17.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Face mounted insert count / ZNF | 2 | |
| torque moment | 1.28 Nm | |
| Insert | WOEX 05T304 | |
| Usable length / LU | 1.0236" | 26.000 mm |
| SIG / SIG | 180 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
