Description
Ceratizit Article Number: 1587431802
Ceratizit Material Number: 14403634
Ceratizit Komet Number (Unpacked): U44 83180
Ceratizit Komet Number (Packed): U4483180
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron 1.50"x3.75"/W8032/31,8/128/R KOMET - Indexable Insert Drill 1587431802 | |
| EDP # | 0759964 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 42.0 oz | 1200 g |

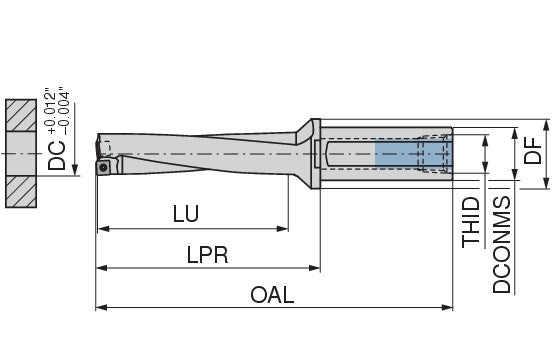

| Cutting diameter / DC | 1.2500" | 31.750 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 9.7343" | 247.250 mm |
| Protruding length / LPR | 5.9843" | 152.000 mm |
| Usable length / LU | 5.0394" | 128.000 mm |
| Insert | SOGX 100408 | |
| Thread designation inside / THID | 3/4" NPT | |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
