Description
Ceratizit Article Number: 6780012597
Ceratizit Material Number: 14414284
Ceratizit Komet Number (Unpacked): M05 01600
Ceratizit Komet Number (Packed): M0501600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

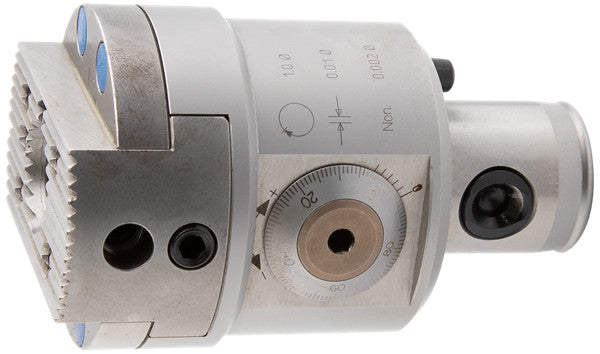

| Name | Ceratizit Fine Boring Head ABS50/ Ø0,236"-Ø14,370" KOMET MicroKom hi.flex Precision Adjustment Head With Inch Adjustment Markings 6780012597 | |
| EDP # | 0760012 | |
| Weight (1 pc.) | 44.0 oz | 1246 g |

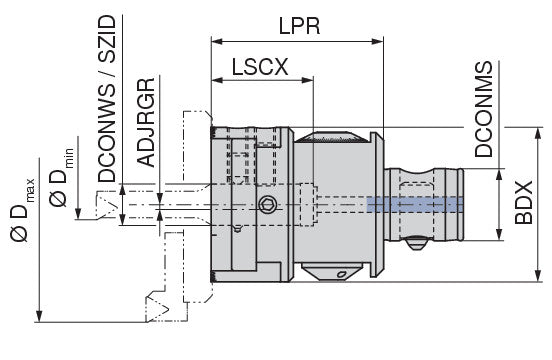

| Dmin - Dmax | 0.0236" - 14.3701" | 0.600 - 365.000 mm |
| Machine interface size | ABS 50 | |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Body diameter maximum / BDX | 2.3622" | 60.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Protruding length / LPR | 2.6378" | 67.000 mm |
| Clamping length maximum machine side / LSCX | 1.5630" | 39.700 mm |
| Adjustment range radial - range / ADJRGR | -0.0197" - 0.3937" | -0.500 - 10.000 mm |
| nominal size / SZID | ABS 32 | |
| Overall length / OAL | 3.8583" | 98.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
