Description
Ceratizit Article Number: 52150100
Ceratizit Material Number: 5215010000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

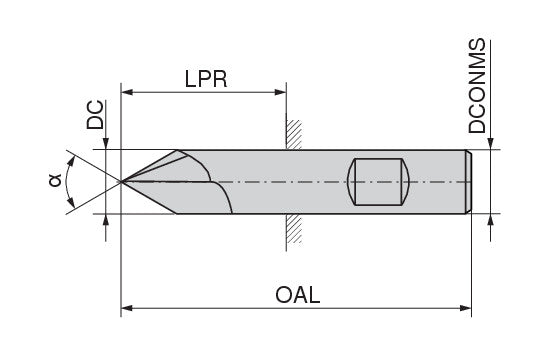

| Properties | ||
|---|---|---|
| Name | Ceratizit N.EF.10,0.60°.Z4.HB NC deburring Cutter 52150100 | |
| EDP # | 0770326 | |
| Weight (1 pc.) | 2.0 oz | 59.0 g |
| Cutting diameter / DC h6 | 3937.0000" | 99999.800 mm |
| Depth of cut maximum / APMX | 3409.0000" | 86588.600 mm |
| Overall length / OAL | 2.3622" | 60.000 mm |
| Protruding length / LPR | 0.7874" | 20.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Profile angle / PRFA | 60 ° | |
| Peripheral effective cutting edge count / ZEFP | 4 | |
| Coating name / Grade (Ceratizit) / COATN | blank | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
