Description
Ceratizit Article Number: 5470127100
Ceratizit Material Number: 5470127100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

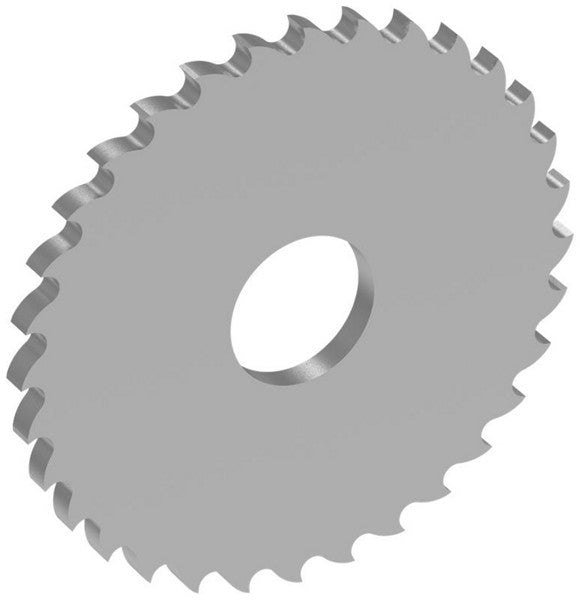

| Name | Ceratizit CS.DIN1838-B.30X1,90.Z24 CoreLine Solid Carbide Circular Saw blades, coarse-toothed, 1838B 5470127100 | |
| EDP # | 0792315 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Machining process - Main Application | Slot milling and saws | |
| Cutting diameter / DC js15 | 1.1811" | 30.000 mm |
| Overall height / OAH ±0,01 | 0.0748" | 1.900 mm |
| Mounting spigot diameter / DCONMS H6 | 0.3150" | 8.000 mm |
| Peripheral effective cutting edge count / ZEFP | 24.0000" | 609.600 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Tool Form:
'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
