Description
Ceratizit Article Number: 70295852
Ceratizit Material Number: 7029585200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

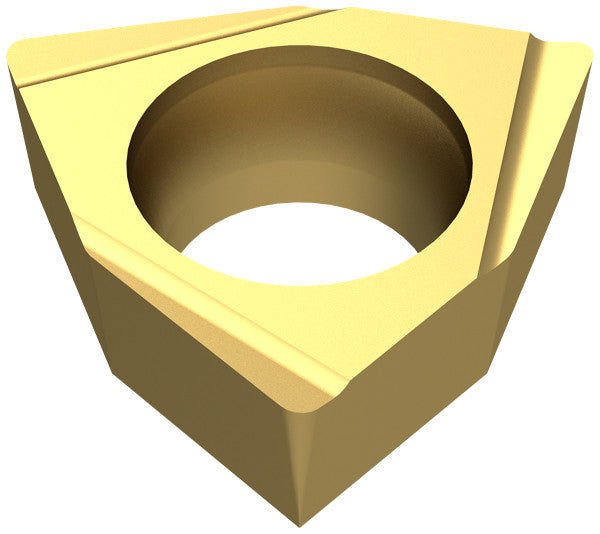

| Name | Ceratizit WCGT 020104 CWN10 CoreLine - HM indexable Insert - 70295852 | |
| EDP # | 0793418 | |
| Weight (1 pc.) | 0.1 oz | 1.5 g |
| designation | 20104.0000" | 510641.600 mm |

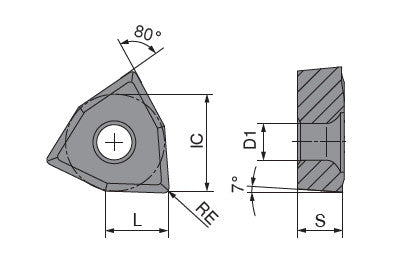

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1067" | 2.710 mm |
| Insert thickness / S | 0.0626" | 1.590 mm |
| Fixing hole diameter / D1 | 0.0827" | 2.100 mm |
| Inscribed circle diameter / IC | 0.1563" | 3.970 mm |
| Size | 2.0000" | 50.800 mm |
| Designation | WCGT 020104 | |
| Chip breaker (Ceratizit) / CBMD | -SF20 | |
| Coating name / Grade (Ceratizit) / COATN | CWN10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
