Description
Ceratizit Article Number: 71206942
Ceratizit Material Number: 7120694200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

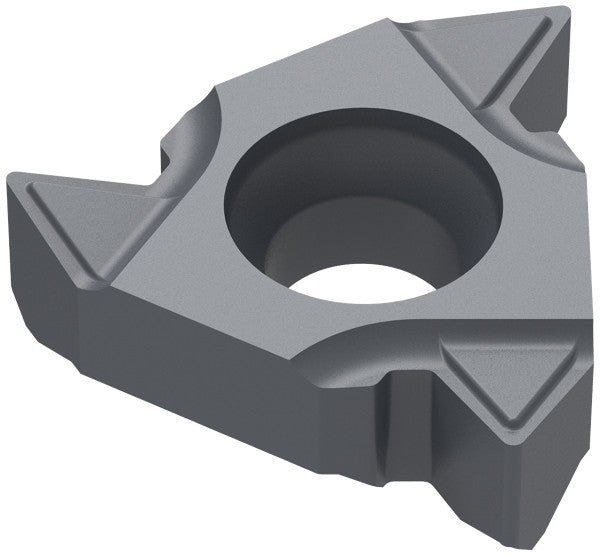

| Name | Ceratizit 16ER.G60-P CTPP525 CoreLine Right Hand External Thread Turning Insert 71206942 | |
| EDP # | 0793676 | |
| Weight (1 pc.) | 0.2 oz | 5.3 g |
| Thread pitch range / TP | 1.75 - 3 | |

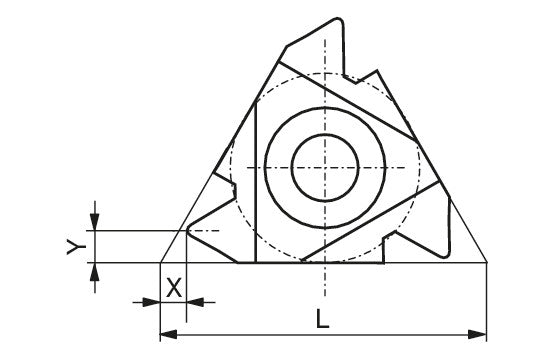

| Insert length / INSL | 0.6299" | 16.000 mm |
| Profile distance ex / PDX | 0.0472" | 1.200 mm |
| Profile distance ey / PDY | 0.0669" | 1.700 mm |
| Number of passes | 9 - 17 | |
| Coating name / Grade (Ceratizit) / COATN | CTPP525 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
