Description
Ceratizit Article Number: 71280125
Ceratizit Material Number: 7128012500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

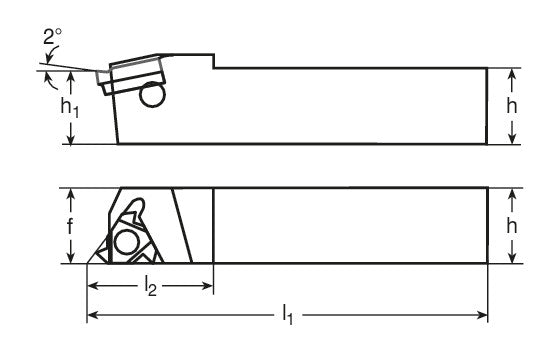

| Properties | ||
|---|---|---|

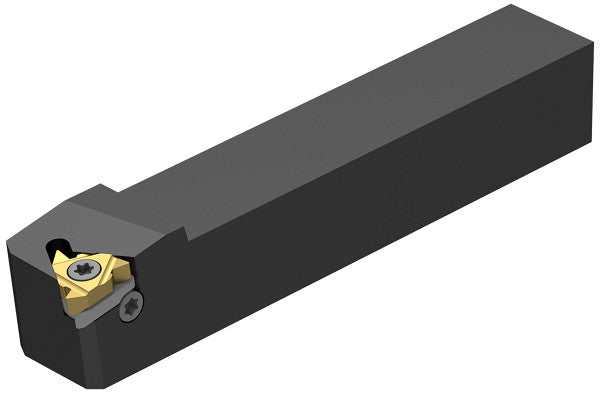

| Name | Ceratizit SER 2525 M22 CoreLine - Standard External Threading Holder 71280125 | |
| EDP # | 0795290 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Steel (Blue) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Functional height / HF | 0.9843" | 25.000 mm |
| Functional width / WF | 0.9843" | 25.000 mm |
| Functional length / LF | 5.9055" | 150.000 mm |
| Head length / LH | 1.2598" | 32.000 mm |
| Insert | 22 .. | |
| Shank height / H | 0.9843" | 25.000 mm |
| torque moment | 10 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
