Description
Ceratizit Article Number: 71283126
Ceratizit Material Number: 7128312600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

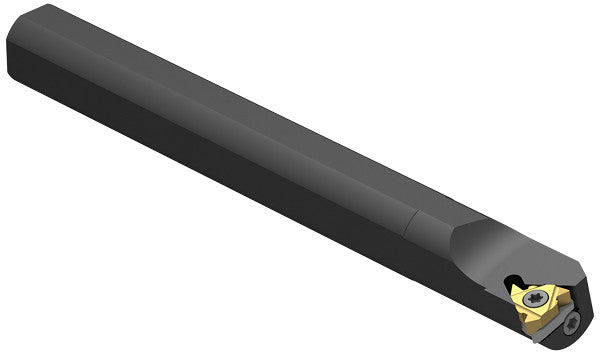

| Name | Ceratizit SIL 0025 R22 CoreLine - Standard Internal Thread Turning Holder 71283126 | |
| EDP # | 0795337 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |

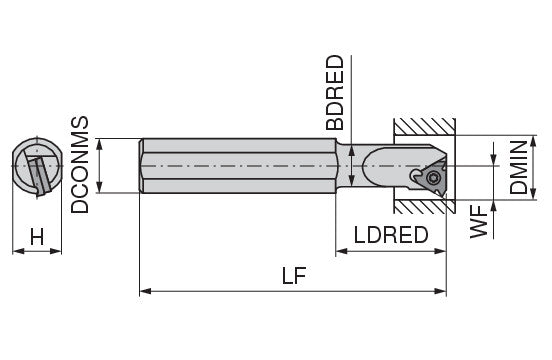

| Shank height / H | 0.8898" | 22.600 mm |
| Functional length / LF | 7.8740" | 200.000 mm |
| Reduced body diameter length / LDRED | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Body diameter, reduced / BDRED | 0.9646" | 24.500 mm |
| Functional width / WF | 0.7126" | 18.100 mm |
| Minimum bore diameter / DMIN | 1.1417" | 29.000 mm |
| Insert | 22 .. | |
| torque moment | 10 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
