Description
Ceratizit Article Number: 72358020
Ceratizit Material Number: 7235802000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

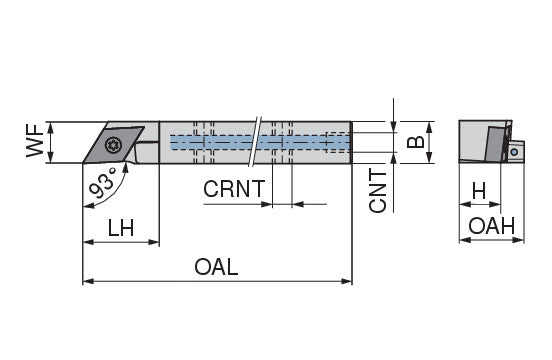

| Properties | ||
|---|---|---|

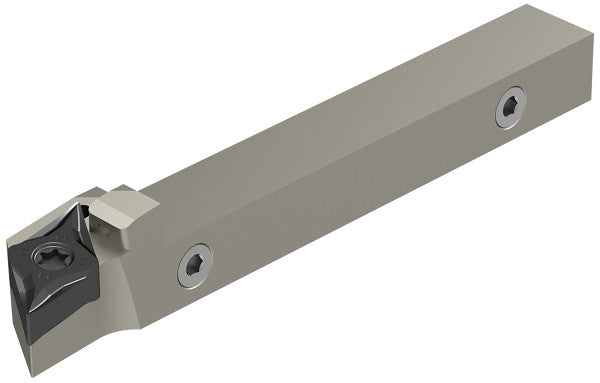

| Name | Ceratizit SDJNR 2020 K11 IC CoreLine - 93° - Tool Holder With Through Coolant 72358020 | |
| EDP # | 0795547 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Overall length / OAL | 4.9213" | 125.000 mm |
| Head length / LH | 0.8661" | 22.000 mm |
| Functional width / WF | 0.7874" | 20.000 mm |
| Insert | DNGU 1104 | |
| Coolant entry style code, radial thread size / CRNT | M5 | |
| Coolant entry, thread size / CNT | G1/8" | |
| Overall height / OAH | 1.0433" | 26.500 mm |
| Clamping system | Conical screw clamping for negative indexable inserts | |
| holder form | SDJN 93° | |
| Internal Coolant | YES | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
