Description
Ceratizit Article Number: 72404728
Ceratizit Material Number: 7240472800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

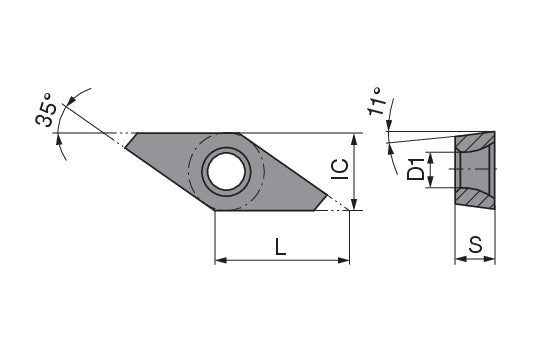

| Properties | ||
|---|---|---|

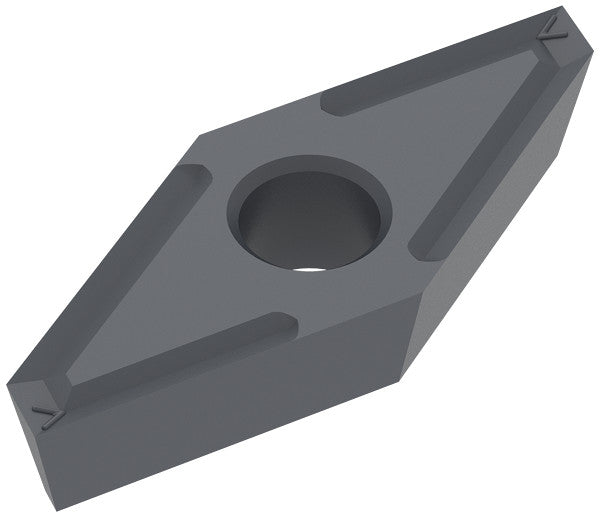

| Name | Ceratizit VPGT 1003008FR WPU7610 CoreLine - Carbide Turning indexable Insert - 72404728 | |
| EDP # | 0795633 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| designation | 1003008.0000" | 25476403.200 mm |
| Corner radius / RE | 0.0031" | 0.080 mm |
| Cutting edge length / L | 0.3937" | 10.000 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Cutting edge effective length / LE | 0.1772" | 4.500 mm |
| Size | 10.0000" | 254.000 mm |
| Designation | VPGT 1003008FR | |
| Chip breaker (Ceratizit) / CBMD | -FR | |
| Coating name / Grade (Ceratizit) / COATN | WPU7610 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
