Description
Ceratizit Article Number: 7252851900
Ceratizit Material Number: 7252851900
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3006.G19.10.55.VP.R WPU7620 CoreLine - Carbide Turning indexable Insert - 7252851900 | |
| EDP # | 0795984 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |

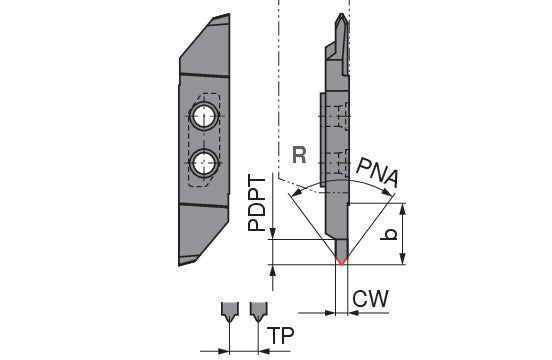

| Thread diameter range / TD | 1/4-19 - 3/8-19 | |
| Thread pitch / TP | 0.0526" | 1.340 mm |
| Cutting width / CW | 0.0583" | 1.480 mm |
| Profile depth insert / PDPT | 0.1299" | 3.300 mm |
| Insert length / INSL | 1.5748" | 40.000 mm |
| Profile included angle / PNA | 55 ° | |
| Shank width (B) | 0.3150" | 8.000 mm |
| Coating name / Grade (Ceratizit) / COATN | WPU7620 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
