Description
Ceratizit Article Number: 72560514
Ceratizit Material Number: 7256051400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

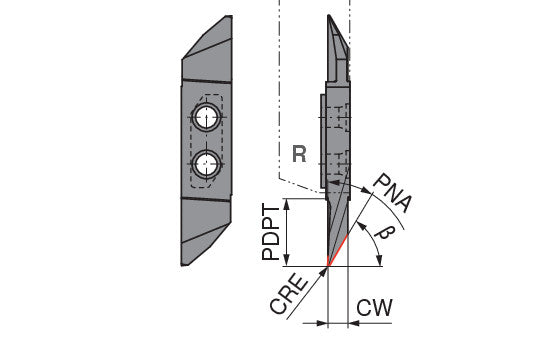

| Properties | ||
|---|---|---|
| Name | Ceratizit 3004.3,2.5.R-SP.35015 WPU7620 CoreLine Carbide Turning indexable Insert 72560514 | |
| EDP # | 0796007 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Cutting width / CW | 0.1260" | 3.200 mm |
| Profile depth insert / PDPT | 0.4331" | 11.000 mm |
| Profile included angle / PNA | 35 ° | |
| Insert length / INSL | 1.5748" | 40.000 mm |
| T | 0.1575" | 4.000 mm |
| Coating name / Grade (Ceratizit) / COATN | WPU7620 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
