Description
Ceratizit Article Number: 72800616
Ceratizit Material Number: 7280061600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

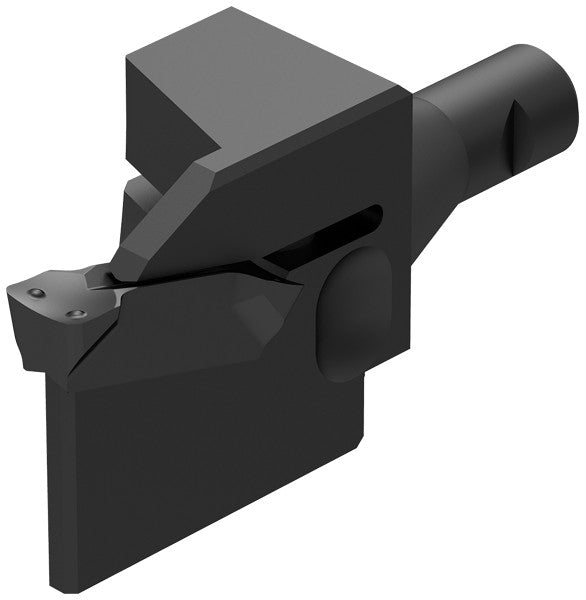

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

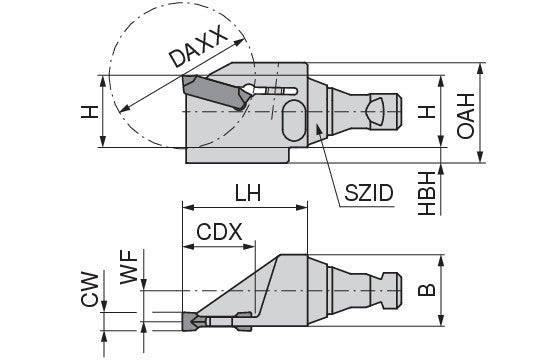

| Properties | ||
|---|---|---|
| Name | Ceratizit GX16-1-R-BH16 CoreLine 09/16 Exchangeable Head Grooving Tool Holder XheadClamp 72800616 | |
| EDP # | 0796029 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | XheadClamp | |
| Shank height / H | 0.6299" | 16.000 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| nominal size / SZID | 16.0000" | 406.400 mm |
| Functional width / WF | 0.2953" | 7.500 mm |
| Head length / LH | 1.1024" | 28.000 mm |
| Overall height / OAH | 0.8858" | 22.500 mm |
| Cutting depth maximum / CDX | 0.6299" | 16.000 mm |
| Head bottom offset height / HBH | 0.1378" | 3.500 mm |
| Cutting width range / CW | 0.60-2.50 | |
| Axial groove outside diameter maximum / DAXX | 1.2598" | 32.000 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
