Description
Ceratizit Article Number: 72804642
Ceratizit Material Number: 7280464200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

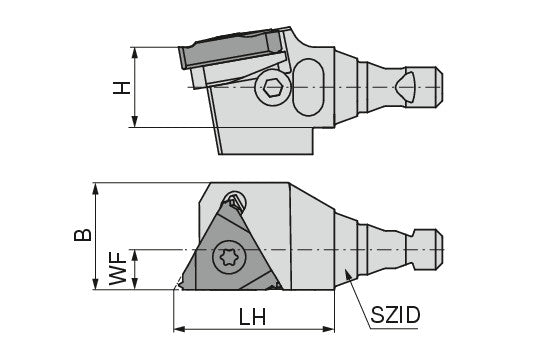

| Properties | ||
|---|---|---|

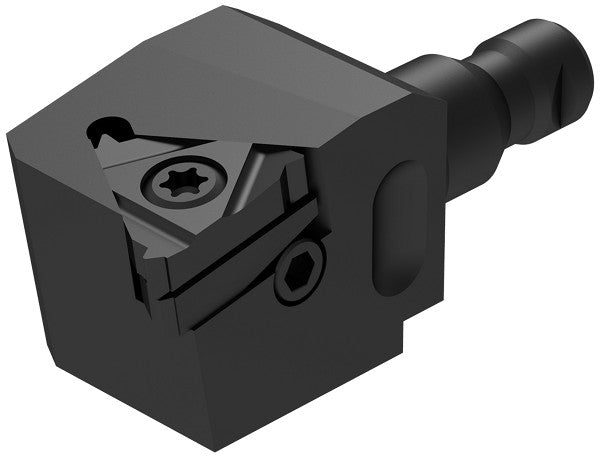

| Name | Ceratizit SER 16-BH16 CoreLine Standard Exchangeable Head External Thread XheadClamp 72804642 | |
| EDP # | 0796045 | |
| Workpiece Material(s) | Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) Composites (Black) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | XheadClamp | |
| nominal size / SZID | 16.0000" | 406.400 mm |
| Functional width / WF | 0.7087" | 18.000 mm |
| Head length / LH | 1.1024" | 28.000 mm |
| Insert | 16 .. | |
| Shank height / H | 0.6299" | 16.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
