Description
Ceratizit Article Number: 72808222
Ceratizit Material Number: 7280822200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

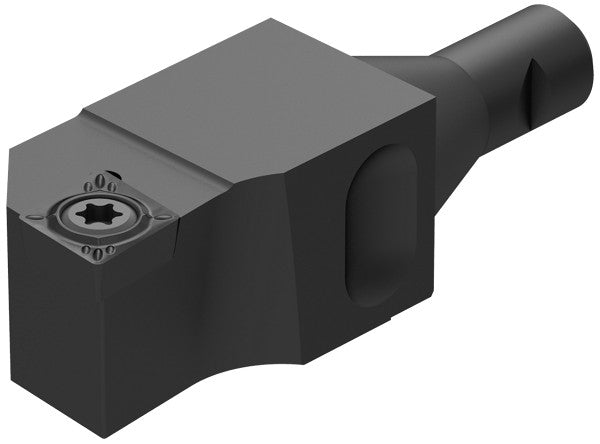

| Name | Ceratizit SCLCR 09-BH12 CoreLine Turning Exchangeable Head 95° XheadClamp 72808222 | |
| EDP # | 0796049 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | XheadClamp | |

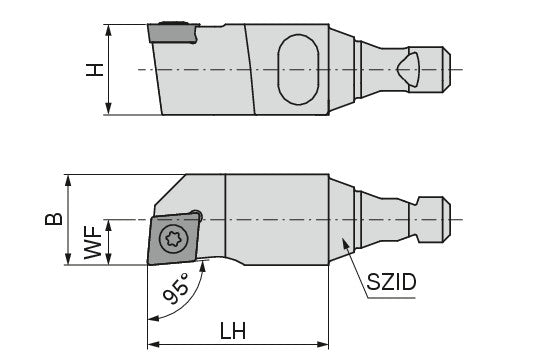

| Shank height / H | 0.4724" | 12.000 mm |
| nominal size / SZID | 12.0000" | 304.800 mm |
| Shank width / B | 0.4724" | 12.000 mm |
| Head length / LH | 0.9449" | 24.000 mm |
| Functional width / WF | 0.2362" | 6.000 mm |
| Insert | CC.. 09T3 | |
| Clamping system | Conical screw clamping for positive inserts | |
| holder form | SCLC 95° | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
