Description
Ceratizit Article Number: 72810631
Ceratizit Material Number: 7281063100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

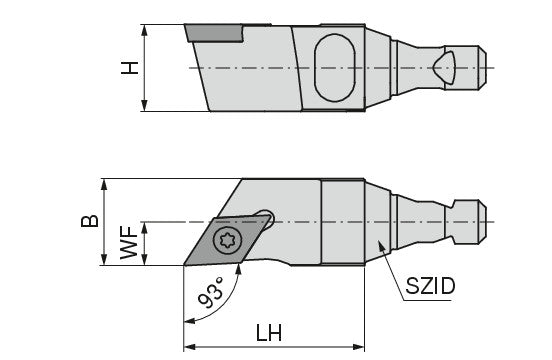

| Properties | ||
|---|---|---|

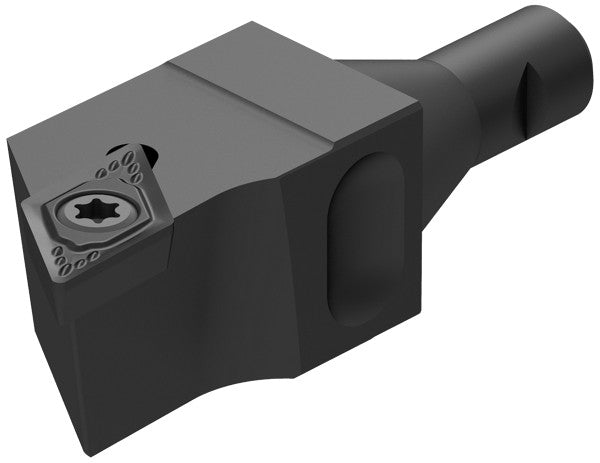

| Name | Ceratizit SDJCR 11-BH16 CoreLine Turning Exchangeable Head 93° XheadClamp 72810631 | |
| EDP # | 0796063 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | XheadClamp | |
| Shank height / H | 0.6299" | 16.000 mm |
| nominal size / SZID | 16.0000" | 406.400 mm |
| Shank width / B | 0.6299" | 16.000 mm |
| Head length / LH | 1.1024" | 28.000 mm |
| Functional width / WF | 0.3150" | 8.000 mm |
| Insert | DC.. 11T3 | |
| Clamping system | Conical screw clamping for positive inserts | |
| holder form | SDJC 93° | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
