Description
Ceratizit Article Number: 72811230
Ceratizit Material Number: 7281123000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

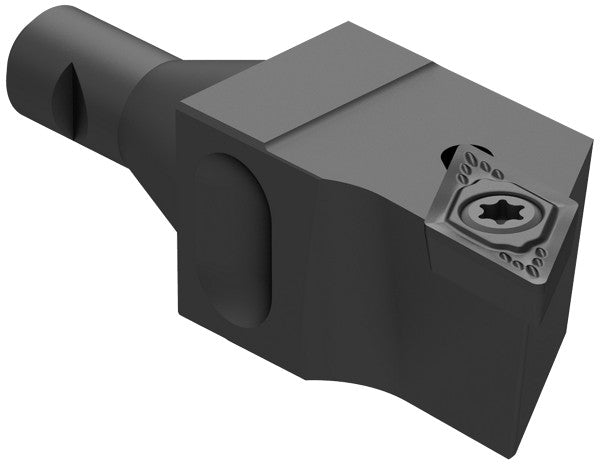

| Name | Ceratizit SDJCL 07-BH12 CoreLine 93° Exchangeable Head Turning Tool XheadClamp 72811230 | |
| EDP # | 0796066 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Productsystem | XheadClamp | |

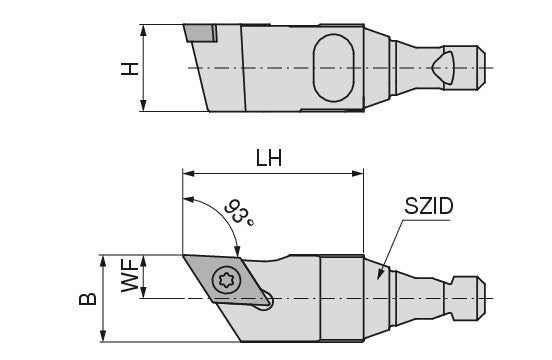

| Shank height / H | 0.4724" | 12.000 mm |
| nominal size / SZID | 12.0000" | 304.800 mm |
| Shank width / B | 0.4724" | 12.000 mm |
| Head length / LH | 0.9449" | 24.000 mm |
| Functional width / WF | 0.2362" | 6.000 mm |
| Insert | DC.. 0702 | |
| Clamping system | Conical screw clamping for positive inserts | |
| holder form | SDJC 93° | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
