Description
Ceratizit Article Number: 73302206
Ceratizit Material Number: 7330220600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

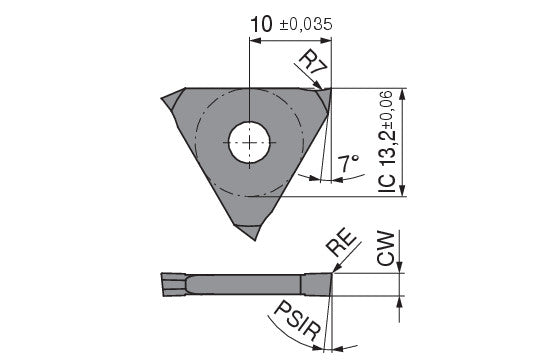

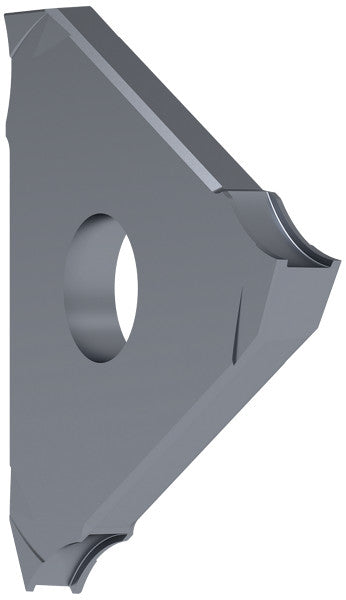

| Name | Ceratizit TXL.0521.00.2 CWX500 CoreLine - Carbide Grooving Insert For Grooving And Parting Off - 73302206 | |
| EDP # | 0796304 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Machining process - Main Application | Parting | |
| Cutting width / CW -0,05 | 0.0902" | 2.290 mm |
| Corner radius / RE | 0.0039" | 0.100 mm |
| Tool lead angle / PSIR | 5 ° | |
| Insert hand / IH | L | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
