Description
Ceratizit Article Number: 73303206
Ceratizit Material Number: 7330320600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

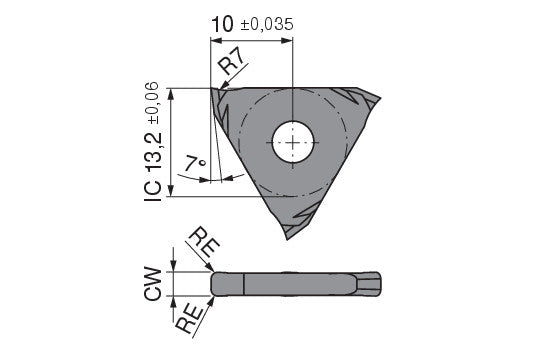

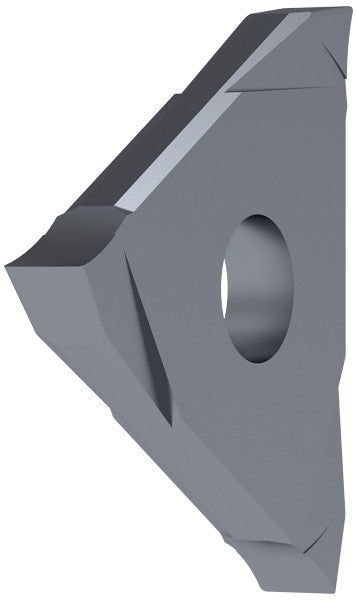

| Name | Ceratizit TXN.0200.02.1 CWX500 CoreLine - Carbide Grooving Insert For Fine And Copy Turning - 73303206 | |
| EDP # | 0796307 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Machining process - Main Application | Copy turning insert | |
| Cutting width / CW +0,03 | 0.0787" | 2.000 mm |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Relief angle / RA | 3 ° | |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
