Description
Ceratizit Article Number: 73304210
Ceratizit Material Number: 7330421000
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

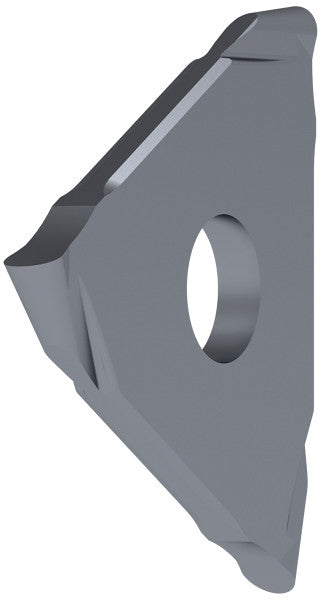

| Name | Ceratizit TXN.0025.50.4 CWX500 CoreLine - Carbide Radius Grooving Insert For Corner Undercuts - 73304210 | |
| EDP # | 0796318 | |
| Weight (1 pc.) | 0.0 oz | 0.0 g |
| Machining process - Main Application | External grooving | |

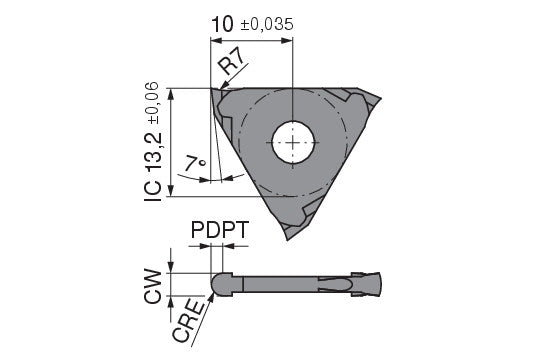

| Cutting width / CW +/-0,05 | 0.1969" | 5.000 mm |
| Insert width / W1 | 0.1810" | 4.600 mm |
| Insert length / INSL | 0.9433" | 23.960 mm |
| Profile depth insert / PDPT | 0.0591" | 1.500 mm |
| Axial groove outside diameter minimum / DAXN | 1.3780" | 35.000 mm |
| Spot radius / CRE | 0.0984" | 2.500 mm |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
