Description
Ceratizit Article Number: 1589217595
Ceratizit Material Number: 14520378
Ceratizit Komet Number (Unpacked): V40 11750
Ceratizit Komet Number (Packed): V4011750
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

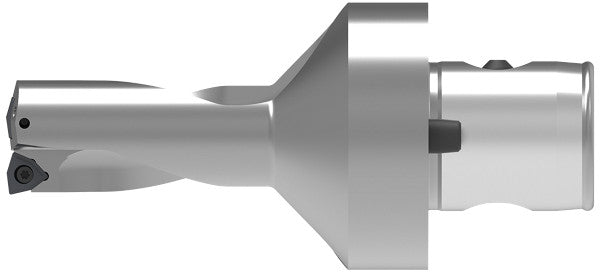

| Name | Ceratizit KUB Trigon ABS50/W2910/0.687/1.417 R - Indexable Insert Drill 1589217595 | |
| EDP # | 0730739 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 400 g |

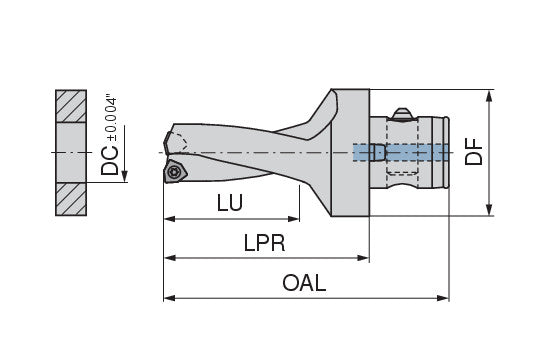

| Cutting diameter / DC | 0.6870" | 17.450 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 4.0160" | 102.006 mm |
| Protruding length / LPR | 2.7955" | 71.006 mm |
| Usable length / LU | 1.4170" | 35.992 mm |
| Insert | WOEX 030204 | |
| torque moment | 0.62 Nm | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
