Description
Material Number: W0289020240
Article Number: 50649202
This product is priced singly and comes in packs of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3A0289-02000.0020.R02.R00200.HA.B550 Torus Cutter W0289020240 (0730830) | |
| EDP # | 0730830 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 30.3 g |

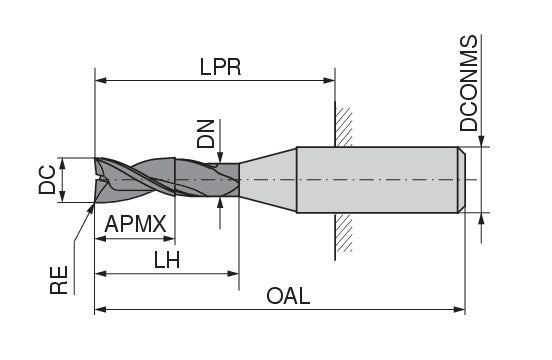

| Cutting diameter DC f8 | 0.0787 inch | 2 mm |
| Corner radius RE -0.015 | 0.0079 inch | 0.2 mm |
| Depth of cut maximum APMX | 0.0787 inch | 2 mm |
| Neck Diameter DN | 0.0756 inch | 1.92 mm |
| Head length LH | 0.3937 inch | 10 mm |
| Protruding length LPR | 0.748 inch | 19 mm |
| Overall length OAL | 2.1654 inch | 55 mm |
| Mounting spigot diameter DCONMS h5 | 0.2362 inch | 6 mm |

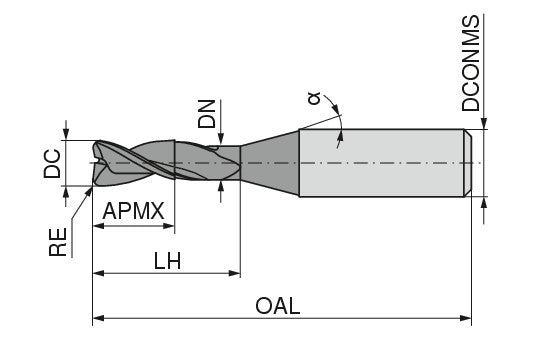

| Alpha | 15 | |
| Peripheral effective cutting edge count ZEFP | 2 | |
| Coating name / Grade (Ceratizit) COATN | Ti1000 | |
Suitable Materials:
