Description
SCR.H-SA.4,0.35°.Z4.HB.L8,0 TI1200 HPC SOLID CARBIDE END MILLING CUTTER
Mat No: 5260404000, Article No: 52604040
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

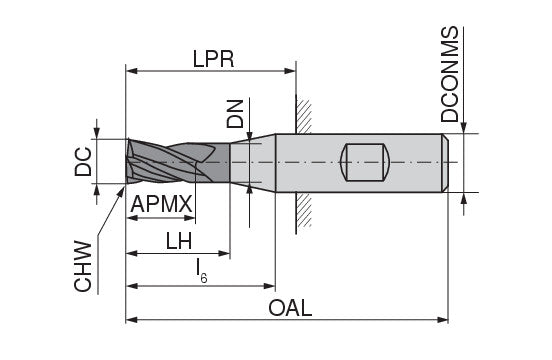

| Properties | ||
|---|---|---|
| Name | CERATIZIT SCR.H-SA.4,0.35°.Z4.HB.L8,0 TI1200 HPC SOLID CARBIDE END MILLING CUTTER 5260404000 (0656984) | |
| EDP # | 0656984 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.7 oz | 20.0 g |
| Cutting diameter DC/d1 f8 | 0.1575 inch | 4 mm |
| Depth of cut maximum APMX/l2 | 0.315 inch | 8 mm |
| Neck Diameter DN/d3 | 0.1496 inch | 3.8 mm |
| Head length LH/l3 | 0.7087 inch | 18 mm |
| L6 l6 | 0.7874 inch | 20 mm |
| Protruding length LPR/l5 | 0.8661 inch | 22 mm |
| Overall length OAL/l1 | 2.2835 inch | 58 mm |
| Mounting spigot diameter DCONMS/d2 h5 | 0.2362 inch | 6 mm |
| Corner chamfer width CHW/K | 0.0028 inch | 0.07 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
