Description
SCR.H-SA.16,0.35°.Z4.HB.L24 TI1200 HPC SOLID CARBIDE END MILLING CUTTER
Mat No: 5260416000, Article No: 52604160
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

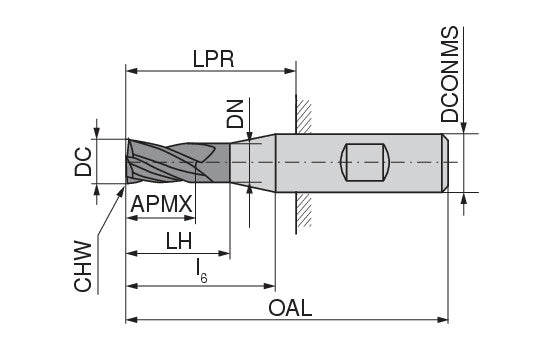

| Properties | ||
|---|---|---|
| Name | CERATIZIT SCR.H-SA.16,0.35°.Z4.HB.L24 TI1200 HPC SOLID CARBIDE END MILLING CUTTER 5260416000 (0657061) | |
| EDP # | 0657061 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 8.4 oz | 237.0 g |
| Cutting diameter DC/d1 f8 | 0.6299 inch | 16 mm |
| Depth of cut maximum APMX/l2 | 0.9449 inch | 24 mm |
| Neck Diameter DN/d3 | 0.6102 inch | 15.5 mm |
| L6 l6 | 1.5748 inch | 40 mm |
| Protruding length LPR/l5 | 1.7717 inch | 45 mm |
| Overall length OAL/l1 | 3.6614 inch | 93 mm |
| Mounting spigot diameter DCONMS/d2 h5 | 0.6299 inch | 16 mm |
| Corner chamfer width CHW/K | 0.0079 inch | 0.2 mm |
| Peripheral effective cutting edge count ZEFP/Z | 4 | |
Application & Properties:
Suitable Materials:
