Description

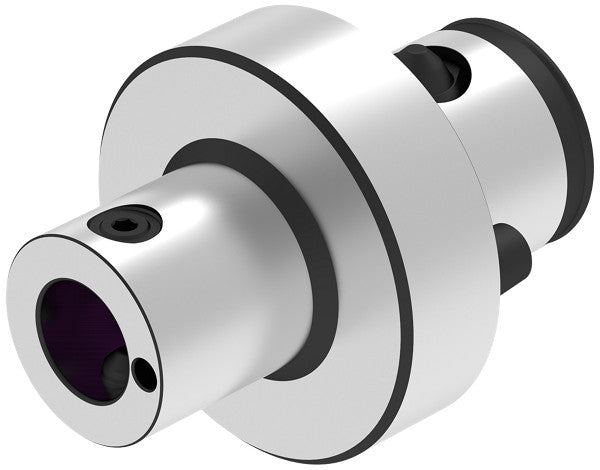

RED.ABS50/ABS40 REDUCTION
Mat No: 12543837, Article No: 8421905088
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

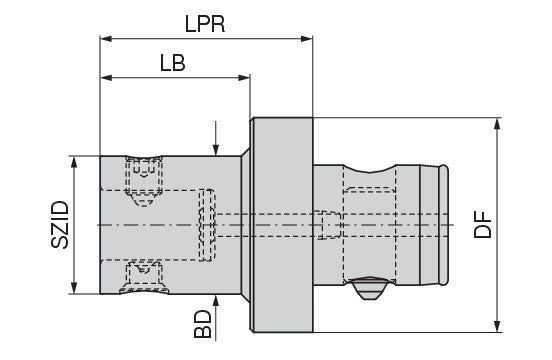

| Properties | ||
|---|---|---|
| Name | CERATIZIT RED.ABS50/ABS40 REDUCTION 12543837 (0660737) | |
| EDP # | 0660737 | |
| Weight | 23.7 oz | 670.5 g |
| Machine interface size | ABS 50 | |
| Neck diameter (BD) BD/D2 | 1.5748 inch | 40 mm |
| Protruding length LPR/A | 1.9685 inch | 50 mm |
| nominal size SZID/Size | ABS 40 | |
| Body length LB/L1 | 1.378 inch | 35 mm |
| Flange diameter DF/D5 | 1.9685 inch | 50 mm |
| Clamping diameter (DCONWS) DCONWS/d1 | 0.7874 inch | 20 mm |
| Mounting spigot diameter DCONMS/D6 | 1.1024 inch | 28 mm |
| Overall length OAL/L3 | 3.189 inch | 81 mm |
Application & Properties:
