Description

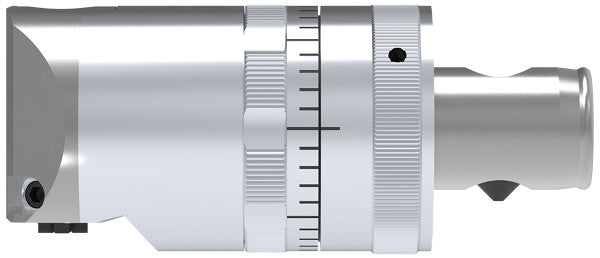

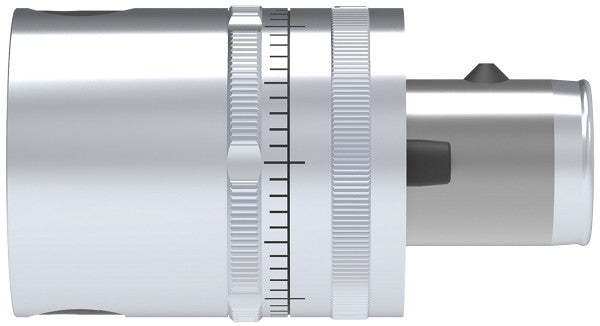

MK.M03S.FVK.38-50.ABS32 MICRO-ADJUSTABLE HEAD Scope of supply: Precision adjustment head with clamping screw Please order insert holder and indexable insert separately
Mat No: 12545847, Article No: 6281505089
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT MK.M03S.FVK.38-50.ABS32 MICRO-ADJUSTABLE HEAD SCOPE OF SUPPLY: PRECISION ADJUSTMENT HEAD WITH CLAMPING SCREW PLEASE ORDER INSERT HOLDER AND INDEXABLE INSERT SEPARATELY 12545847 (0660819) | |
| EDP # | 0660819 | |
| Weight | 14.2 oz | 403.7 g |

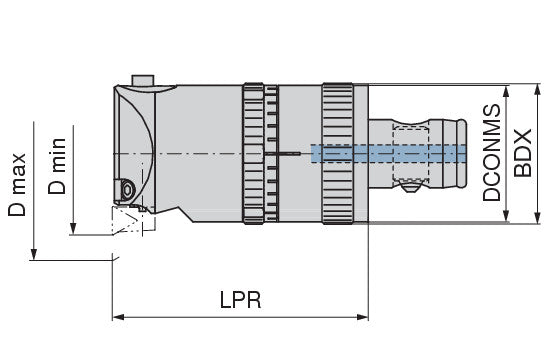

| Dmin - Dmax | 38 - 50 mm | |
| Machine interface size | ABS 32 | |
| Mounting spigot diameter DCONMS/D6 | 1.2598 inch | 32 mm |
| Body diameter maximum BDX/D1 | 1.2992 inch | 33 mm |
| Protruding length LPR/A | 2.3622 inch | 60 mm |
| nominal size SZID/Size | ABS 32 | |
Application & Properties:
