Description

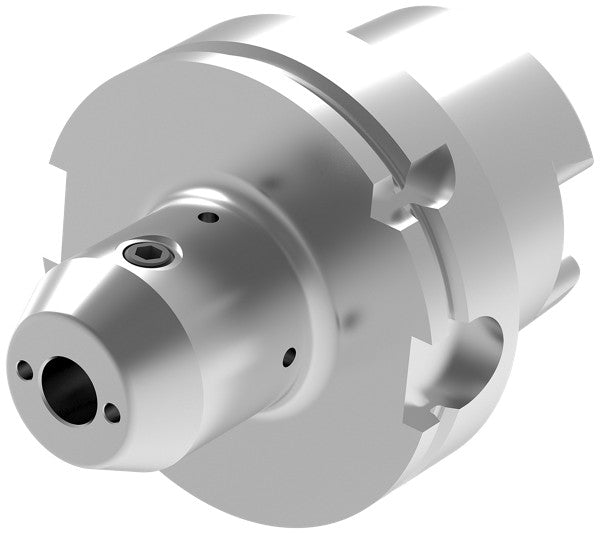

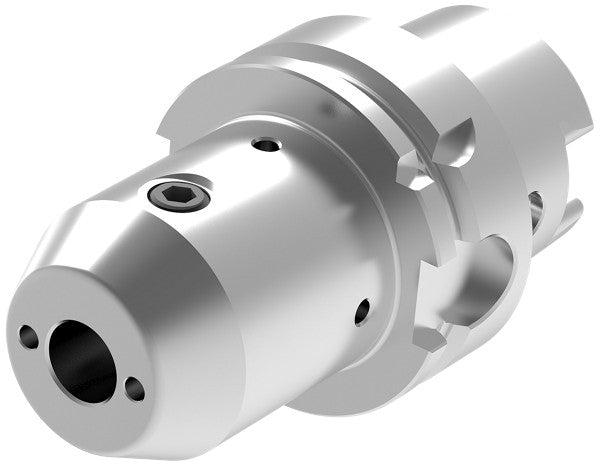

DIN69893A-AD100.WE.20.100.F CYLINDRICAL SHANK ADAPTER WELDON S IC For shanks according to DIN 6535 HB / 1835 B with lateral clamping flat also available with Balluff chip on request
Mat No: 8470012000, Article No: 84700120
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT DIN69893A-AD100.WE.20.100.F CYLINDRICAL SHANK ADAPTER WELDON S IC 8470012000 (0657797) | |
| EDP # | 0657797 | |
| Weight | 107.5 oz | 3047.1 g |
| Machine interface size | HSK-A 100 | |

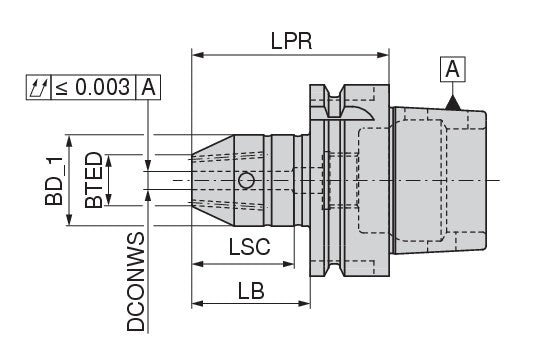

| Clamping diameter (DCONWS) DCONWS/d1 H5 | 0.7874 inch | 20 mm |
| Protruding length LPR/A | 3.937 inch | 100 mm |
| Neck diameter (BD) BD/D1 | 2.0472 inch | 52 mm |
| Body diameter. 1st cutting step BD_1/D2 | 2.0472 inch | 52 mm |
| Body taper end diameter BTED/D1 | 1.5748 inch | 40 mm |
| Body length LB/L1 | 2.7953 inch | 71 mm |
| Clamping length machine side LSC/l1 | 1.9291 inch | 49 mm |
| Body half taper angle BHTA/a° | 25 ° | |
| Balance quality | G 2.5 n<sub>max</sub> 25000 | |
Application & Properties:
