CERATIZIT DIN69893A-AD100.WE.16.100.F CYLINDRICAL SHANK ADAPTER WELDON S IC 8470011600 (0657798)


Price:
Sale price$314.55
Stock:
Not in stock - Available to order

Description

DIN69893A-AD100.WE.16.100.F CYLINDRICAL SHANK ADAPTER WELDON S IC For shanks according to DIN 6535 HB / 1835 B with lateral clamping flat also available with Balluff chip on request

Mat No: 8470011600, Article No: 84700116

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT DIN69893A-AD100.WE.16.100.F CYLINDRICAL SHANK ADAPTER WELDON S IC 8470011600 (0657798)
EDP # 0657798
Weight 103.6 oz 2937.3 g

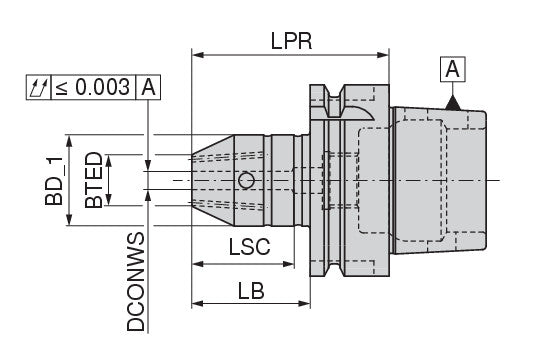

Adapter HSK-A 100
Connection diameter workpiece side DCONWS/d1 H5 0.6299 inch 16 mm
Protruding length LPR/A 3.937 inch 100 mm
Body diameter BD/D1 1.8898 inch 48 mm
Body diameter. 1st cutting step BD_1/D2 1.8898 inch 48 mm
Body taper end diameter BTED/D1 1.4173 inch 36 mm
Body length LB/L1 2.7953 inch 71 mm
Clamping length machine side LSC/l1 1.8504 inch 47 mm
Body half taper angle BHTA/a° 25 °
