CERATIZIT ISO: HSK100A-WBH50-120 ANSI: HSK100A-WBH50-120 INDEXABLE INSERT ADAPTER 12113669 (0657803)


Price:
Sale price$265.16
Stock:
Not in stock - Available to order

Description

ISO: HSK100A-WBH50-120 ANSI: HSK100A-WBH50-120 INDEXABLE INSERT ADAPTER

Mat No: 12113669, Article No: 10842450

This product comes in packages of 1

Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name CERATIZIT ISO: HSK100A-WBH50-120 ANSI: HSK100A-WBH50-120 INDEXABLE INSERT ADAPTER 12113669 (0657803)
EDP # 0657803
Weight 146.7 oz 4160.0 g
Adapter HSK-A 100

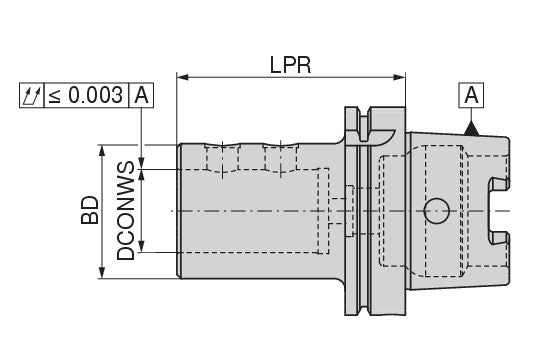

Connection diameter workpiece side DCONWS/d1 1.9685 inch 50 mm
Protruding length LPR/A 4.7244 inch 120 mm
Body diameter BD/D1 2.9528 inch 75 mm
Overall length OAL/L3 6.6929 inch 170 mm

Application & Properties:

,
