Description
Ceratizit Article Number: 70540720
Ceratizit Material Number: 11224625
Ceratizit Komet Number (Unpacked): 59599 05267
Ceratizit Komet Number (Packed): 5959905267
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

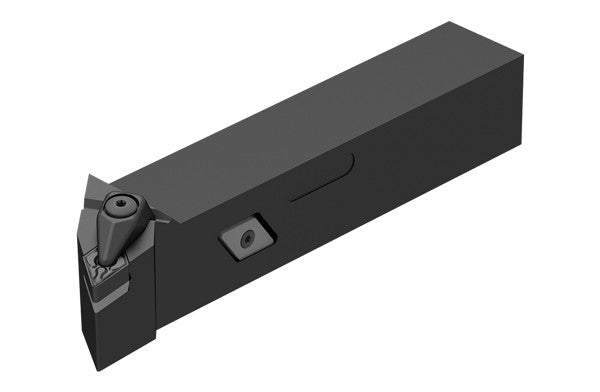

| Name | Ceratizit DDJNR 2020 K15 MaxiLock-D - 93° - Toolholder With Top Clamping 70540720 | |
| EDP # | 0751739 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Cast Iron (Red) Aluminum (Green) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 398 g |

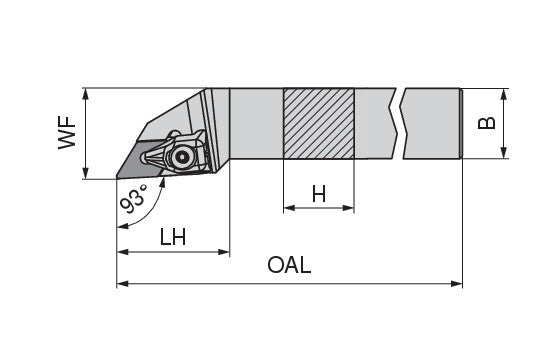

| Shank height / H | 0.7874" | 20.000 mm |
| Shank width / B | 0.7874" | 20.000 mm |
| Overall length / OAL | 4.9213" | 125.000 mm |
| Head length / LH | 1.5748" | 40.000 mm |
| Functional width / WF | 0.9843" | 25.000 mm |
| Insert | DN.. 1504 / 1506 | |
| Overall height / OAH | 1.0126" | 25.720 mm |
| torque moment | 4 Nm | |
| Version | Right | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
