Description
Ceratizit Article Number: 70541725
Ceratizit Material Number: 11224627
Ceratizit Komet Number (Unpacked): 18073 52524
Ceratizit Komet Number (Packed): 1807352524
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

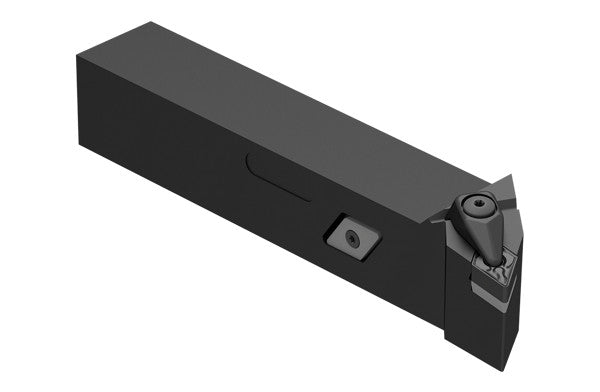

| Name | Ceratizit DDJNL 2525 M15 MaxiLock-D - 93° - Toolholder With Top Clamping 70541725 | |
| EDP # | 0751740 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 26.0 oz | 727 g |

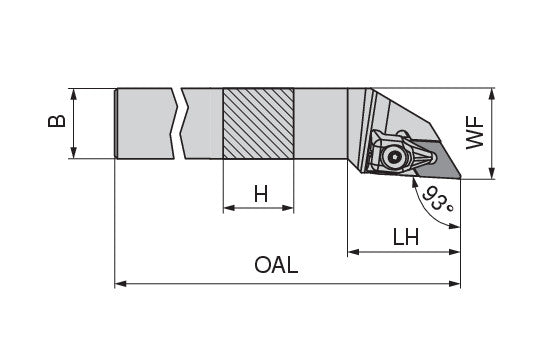

| Shank height / H | 0.9843" | 25.000 mm |
| Shank width / B | 0.9843" | 25.000 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Head length / LH | 1.5748" | 40.000 mm |
| Functional width / WF | 1.2598" | 32.000 mm |
| Insert | DN.. 1504 / 1506 | |
| Overall height / OAH | 1.2402" | 31.500 mm |
| torque moment | 4 Nm | |
| Version | Left | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
