Description
Ceratizit Article Number: 7880413200
Ceratizit Material Number: 11894040
Ceratizit Komet Number (Unpacked): 11894 040
Ceratizit Komet Number (Packed): 11894040
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ECC 32R-2.25D 17-E EcoCut Classic 2.25xD 7880413200 | |
| EDP # | 0752168 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 42.0 oz | 1200 g |

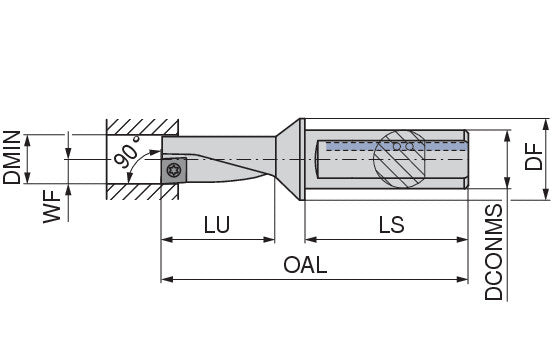

| Minimum bore diameter / DMIN | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 1.5000" | 38.100 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 6.2000" | 157.480 mm |
| Usable length / LU | 2.8300" | 71.882 mm |
| Shank length / LS | 2.7400" | 69.596 mm |
| Functional width / WF | 0.6299" | 16.000 mm |
| Insert | XC.T 1705.. | |
| torque moment | 5 Nm | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
