Description
Ceratizit Article Number: 70821125
Ceratizit Material Number: 12078160
Ceratizit Komet Number (Unpacked): 59601 00082
Ceratizit Komet Number (Packed): 5960100082
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

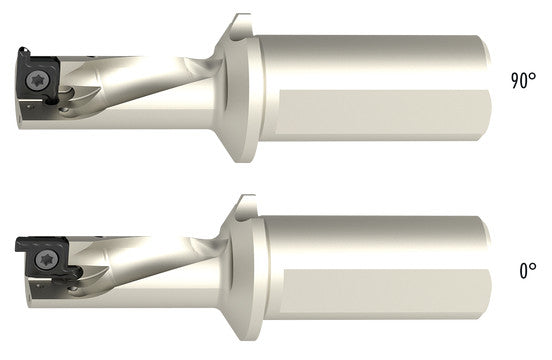

| Name | Ceratizit PMC 25L-2.25D EcoCut ProfileMaster 2.25xD 70821125 | |
| EDP # | 0752257 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 22.0 oz | 630 g |
| Product-Carbon-Footprint | B | |

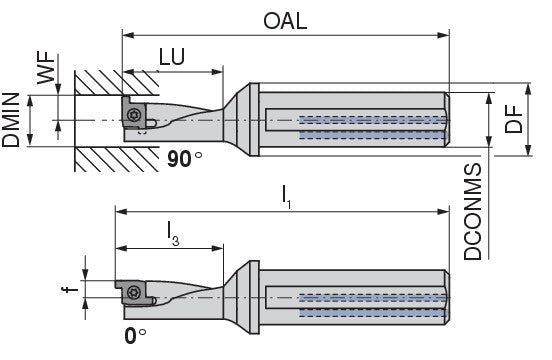

| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Overall length / OAL | 5.2205" | 132.600 mm |
| Usable length / LU | 2.2146" | 56.250 mm |
| Functional width / WF | 0.4921" | 12.500 mm |
| L1 | 5.3504" | 135.900 mm |
| L3 | 2.3465" | 59.600 mm |
| F | 0.3622" | 9.200 mm |
| torque moment | 3.2 Nm | |
| Insert | PM 25R/L | |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
