Description
Ceratizit Article Number: 8422402588
Ceratizit Material Number: 12540285
Ceratizit Komet Number (Unpacked): A33 13141
Ceratizit Komet Number (Packed): A3313141
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

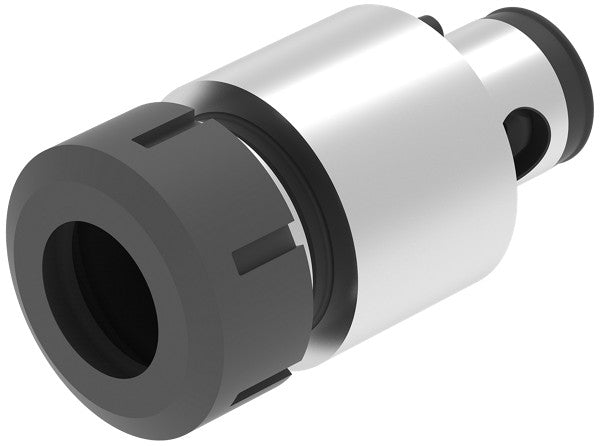

| Name | Ceratizit COLLET HOLDER ABS40-SZV/ER25 Collet Chuck With Connection 8422402588 | |
| EDP # | 0755872 | |
| Weight (1 pc.) | 18.0 oz | 515 g |
| Machine interface size | ABS 40 | |
| for collet | 430E (ER25) | |

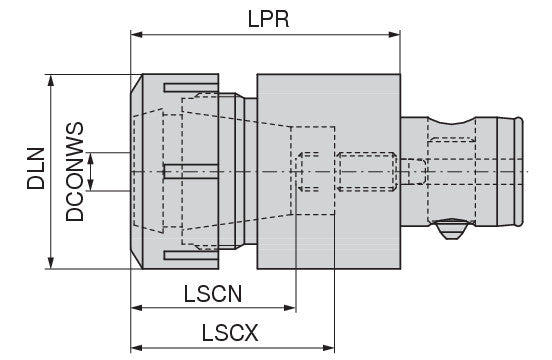

| Clamping Ø, nominal, workpc. side - range / DCONWS | 1 - 16 mm | |
| Protruding length / LPR | 2.4409" | 62.000 mm |
| Diameter Lock Nut / DLN | 1.6535" | 42.000 mm |
| Clamping length maximum machine side / LSCX | 1.8110" | 46.000 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
