Description
Ceratizit Article Number: 8422403297
Ceratizit Material Number: 12540286
Ceratizit Komet Number (Unpacked): A33 14151
Ceratizit Komet Number (Packed): A3314151
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

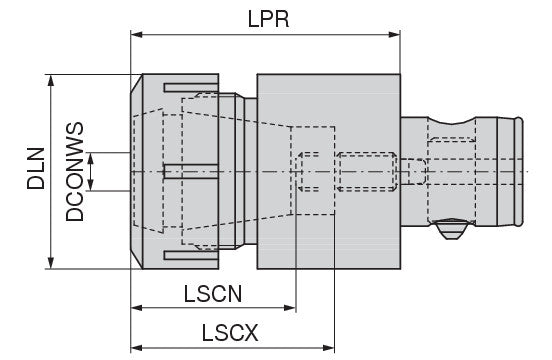

| Properties | ||
|---|---|---|

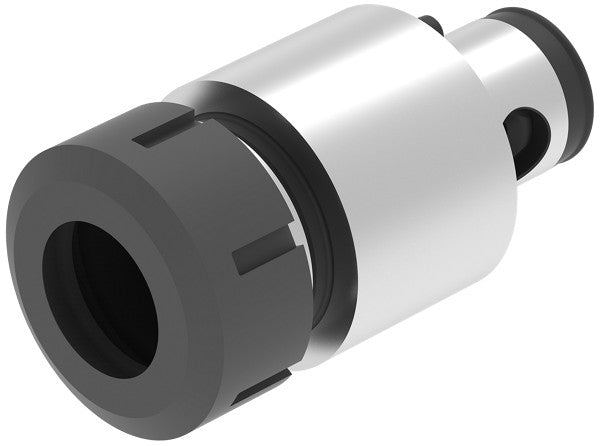

| Name | Ceratizit COLLET HOLDER ABS50-SZV/ER32 Collet Chuck With Connection 8422403297 | |
| EDP # | 0755873 | |
| Weight (1 pc.) | 31.0 oz | 874 g |
| Machine interface size | ABS 50 | |
| for collet | 470E (ER32) | |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 2 - 20 mm | |
| Protruding length / LPR | 2.7283" | 69.300 mm |
| Diameter Lock Nut / DLN | 1.9685" | 50.000 mm |
| Clamping length maximum machine side / LSCX | 2.0079" | 51.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
