Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Poker' line is for general drilling and tapping with tighter tolerances.
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
| Tool Properties | ||
|---|---|---|

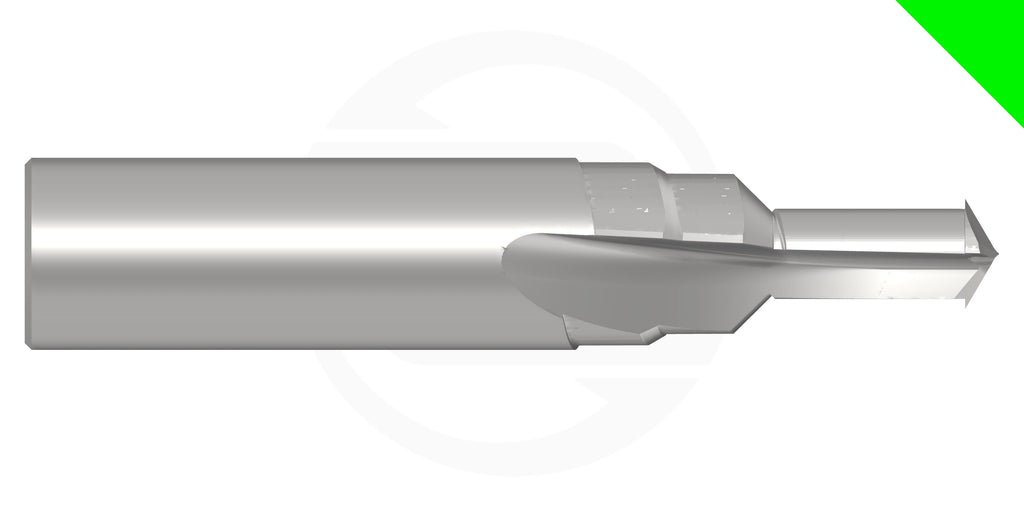

| Name | GRNPOKERR-12.10D35.0-5STEPDRIL-U40CG1 | |
| EDP # | 0745894 | |
| Material | Wrought Aluminum | Application | Finish Drilling, Tapping (Poker) |
| Form | Drill | |
| Cutting Diameter | 0.4764" | 12.100 mm |
| Cutting Length | 1.3780" | 35.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.3780" | 35.000 mm |
| Reach | 1.3780" | 35.000 mm |
| Minimum Extension | NaN" | NaN mm |
| Maximum Extension | 2.8" | 71.6 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.0" | 101 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h5 | |
