Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

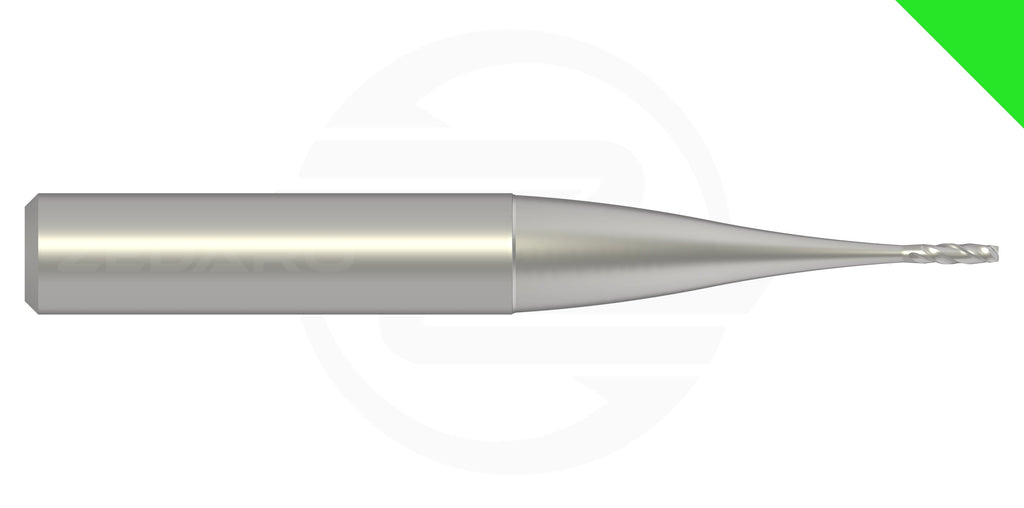

| Name | GRNSHREDR-1.000R0.10-5.00CON25.4-G20AB1 | |
| EDP # | 0656687 | |
| Material | Wrought Aluminum | Application | General Milling >20k RPM (Shredder) |
| Form | End Mill - Bull / Rounded Corner | |
| Cutting Diameter | 0.0394" | 1.000 mm |
| Corner Radius | 0.0039" | 0.100 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.1575" | 4.000 mm |
| Reach | 0.1969" | 5.000 mm |
| Minimum Extension | 1.0" | 25.4 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 2 | |
| Tolerance Class | null | |
