Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Pecker' line is for general drilling and tapping.
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
| Tool Properties | ||
|---|---|---|

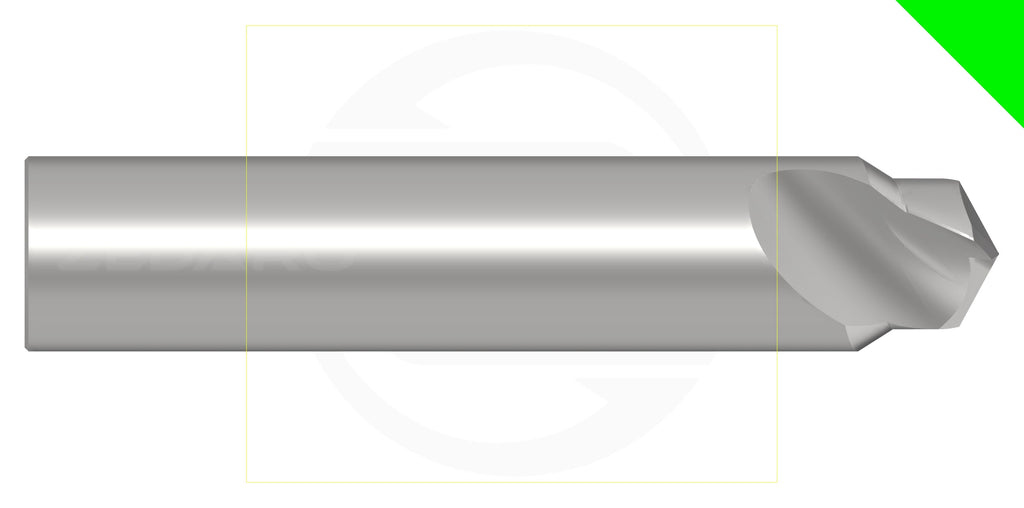

| Name | GRNPECKER-10.20D6.00-0727877-N25AB1 | |
| EDP # | 0727877 | |
| Material | Wrought Aluminum | Application | General Drilling, Tapping (Pecker) |
| Form | Drill | |
| Cutting Diameter | 0.4016" | 10.200 mm |
| Cutting Length | 0.2362" | 6.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3346" | 8.500 mm |
| Reach | 0.3346" | 8.500 mm |
| Minimum Extension | 0.6" | 16.2 mm |
| Maximum Extension | 1.8" | 44.5 mm |
| Shank Diameter h6 | 0.5000" | 12.700 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 2 | |
| Tolerance Class | null | |
